BFC-15W9 Quick Reference Guide
7
1.4 System Overview

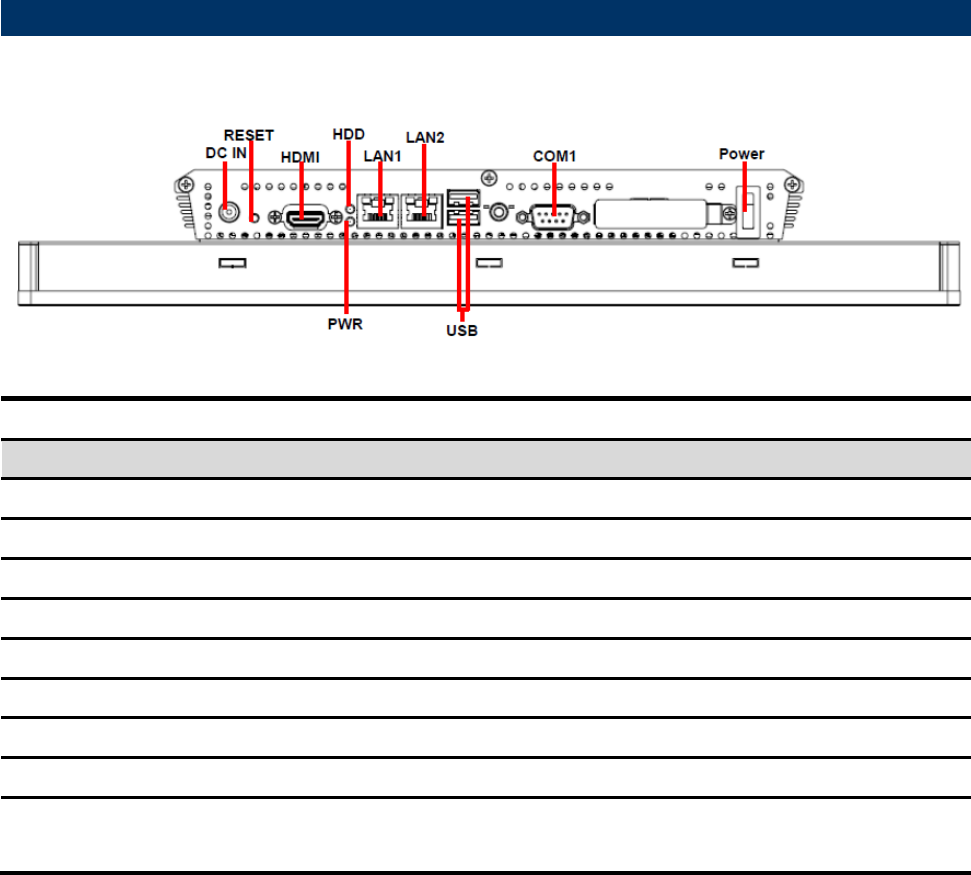

1.4.1 Rear View
Connectors
Label
Function
Note
COM1
External Serial Port 1 connector
DB-9 male connector
HDMI
HDMI connector
LAN1/2
RJ-45 Ethernet 1/2
Power
System power switch
DC IN
DC Power-in connector
RESET
Reset button
HDD
HDD LED
PWR
Power LED
USB
USB 2.0 connector x 1
USB 3.0 connector x 1
