(b) Connect the SCSI cable from the external SCSI connector on the
AcceleRAID 170LP controller to an external drive set or external
cabinet enclosure (Figure 2-11).

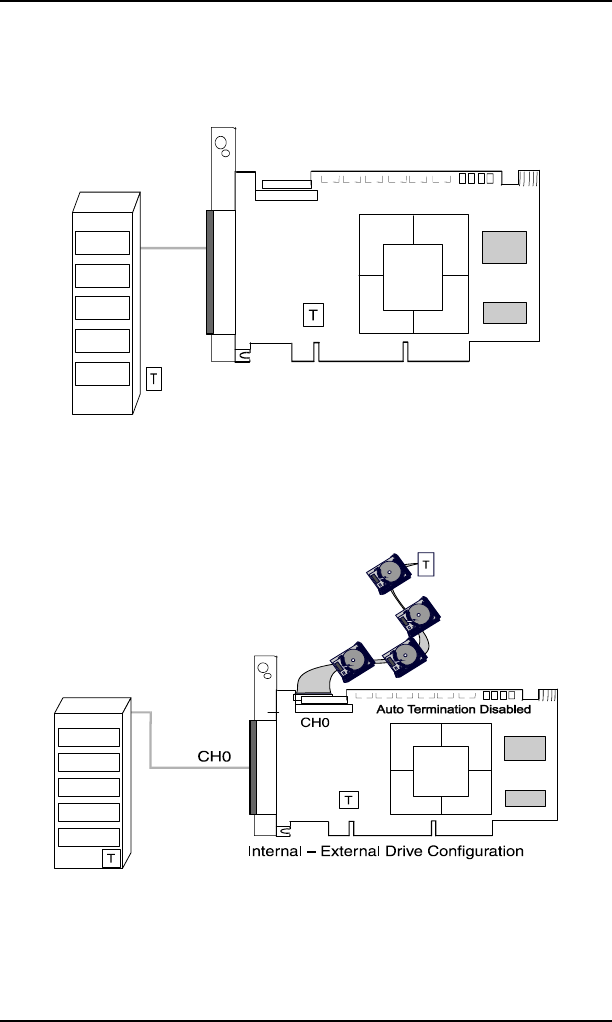

Figure 2-11. Connecting External Disk Drives to the AcceleRAID 170LP
(c) Connect internal devices as in (a), and external devices as in (b).
The combined configuration is illustrated in Figure 2-12.
Figure 2-12. Combined Internal and External Configuration
