Installation Process
2-8 AcceleRAID 170LP Installation Guide
Installation Process
Follow these installation steps:

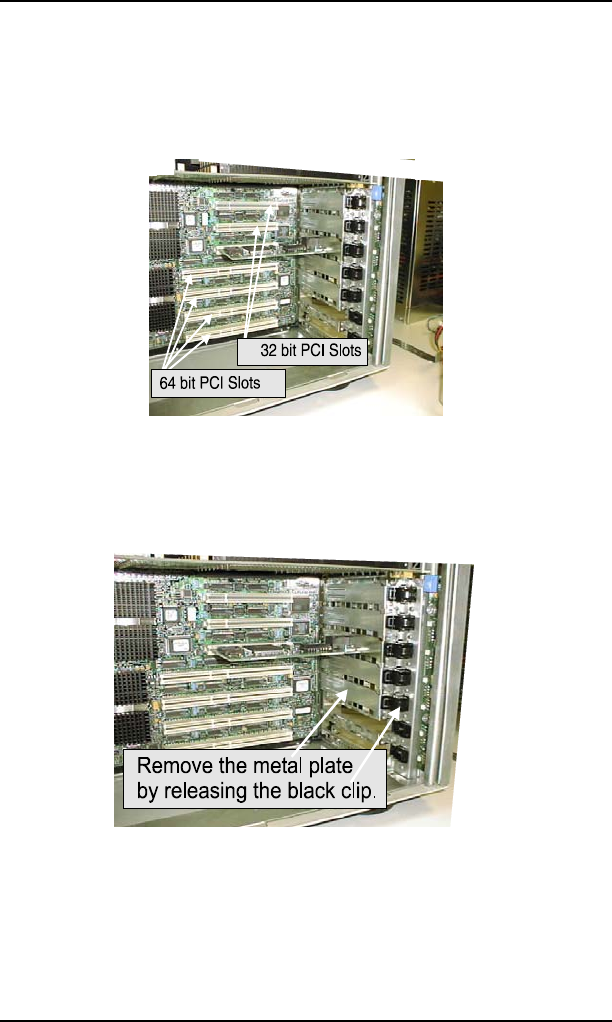

1. Choose any available 32-bit or 64-bit PCI slot as shown in Figure 2-4.
Figure 2-4. Choose an Available PCI Slot
2. Remove the metal cover plate from the slot’s access port (at the back of
the cabinet) usually by releasing the black clip as shown in Figure 2-5.
Figure 2-5. Remove the Metal Plate
