Connectors, LEDs, and Jumpers
2-6 AcceleRAID 170LP Installation Guide

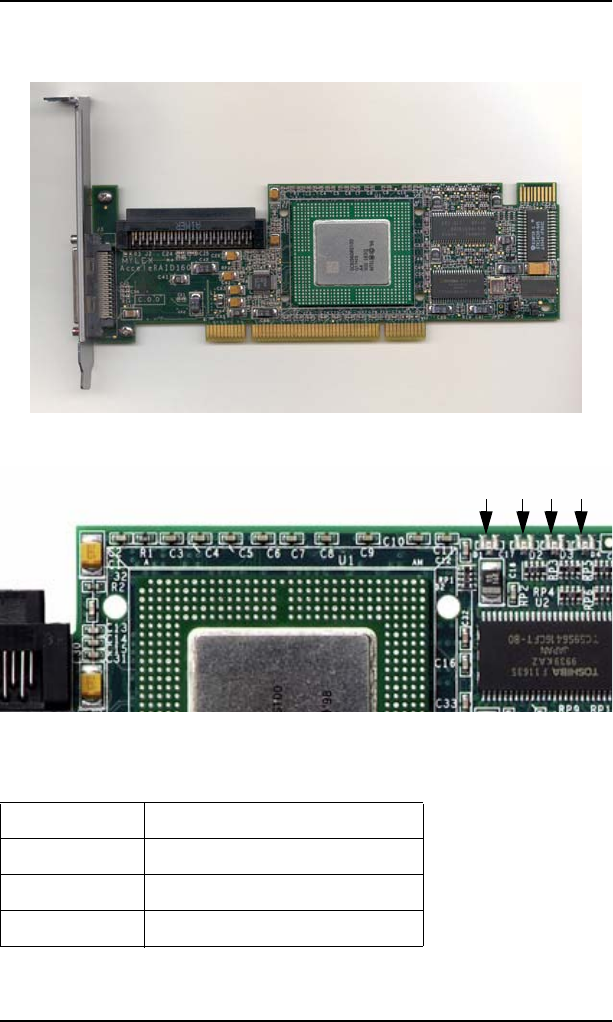

Figure 2-1. AcceleRAID 170LP Controller with Channel 0 Connectors
Figure 2-2. AcceleRAID 170LP LEDs
Table 2-2. LED Descriptions
D1 FAIL (Processor Self Test)
D2 TERM_LED (Terminator Enabled)
D3 SCSI_LVD Mode
D4 SCSI_SE (Single Ended) Mode
CH0
CH0
D1 D2 D3 D4
