MM1000.1D / MM1500.1D / MONO AMPLIFIER APPLICATIONS
Basic application
SINGLE AMP INSTALLATION PROCEDURE:
4. Connect a 2 gauge ground cables directly to chassis ground with in 36” of the
1. Connect the amp LINE INPUTS to the Radio/CD player full range or mono
amp.
line out puts with good quality RCA interconnect cables.
- Be sure to remove any paint or primer from the ground point.
2. Plug in the bass remote module into the amp REMOTE input jack.
- Use a nut, bolt and lock washer to secure the ground cable to the chassis
3. Route a 2 gauge power cables directly to the vehicle battery with an in-line
ground.
fuse.

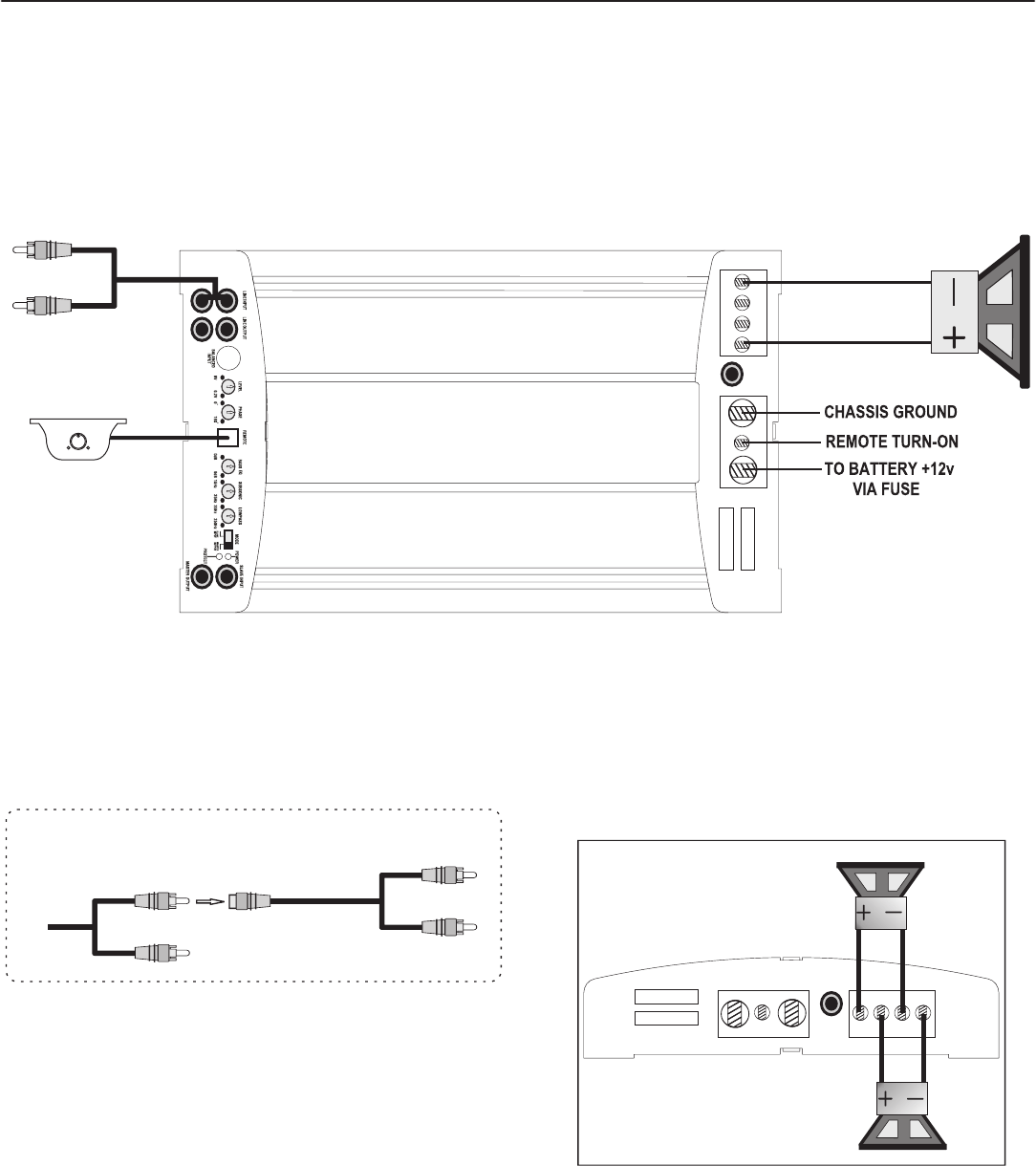

5. Connect the subwoofer(s) in accordance to the diagrams below.
6. Make sure the MASTER/SLAVE switch is in the MASTER position.
PARALLEL MONO
SUBWOOFERS
2 OHMS EACH MINIMUM
FULL RANGE
STEREO LINE INPUT
NOT USED
Y-ADAPTOR
Note: You can use the Radio/CD designated mono
line output or a full range stereo line output.
For full range stereo line output, you will need an
optional “Y-Adaptor” as shown
MONO
SUBWOOFER
DESIGNATED
MONO
LINE INPUT
