BIELA14 SERIES LOV™ ELECTRIC FRYERS
CHAPTER 1: SERVICE PROCEDURES
1.1 General
Before performing any maintenance on your Frymaster fryer, disconnect the fryer from the electrical
power supply.
WARNING
To ensure the safe and efficient operation of the fryer and hood, the electrical plug for
the 120-volt line, which powers the hood, must be fully engaged and locked in its pin
and sleeve socket.
When electrical wires are disconnected, it is recommended that they be marked in such a way as to
facilitate re-assembly.
1.2 Replacing a Computer
1. Disconnect the fryer from the electrical power supply.
2. The controller bezel is held in place by tabs at the top and bottom. Slide the metal bezel up to
disengage the lower tabs. Then slide the bezel down to disengage the upper tabs.
3. Remove the two screws from the upper corners of the control panel. The control panel is hinged at
the bottom and will swing open from the top.
4. Unplug the wiring harnesses from the connectors on the back of the computer, marking their
position for reassembly, and disconnect the grounding wires from the terminals. Remove the
control panel assembly by lifting it from the hinged slots in the control panel frame.
5. Remove the controller from the control panel assembly and install the replacement computer.
Reinstall the control panel assembly by reversing steps 1 thru 4.
6. Setup the computer following the instructions on page 4-9 in the Installation and Operation
manual.
7. Readdress the new M2007 computer. The readdress procedure can be performed from any one
M2007 computer in the bank. See section 1.14.2 on page 1-32 for instructions to readdress the
computer.
1.3 Replacing Component Box Components
1. Disconnect the fryer from the electrical power supply.
2. The controller bezel is held in place by tabs at the top and bottom. Slide the metal bezel up to
disengage the lower tabs. Then slide the bezel down to disengage the upper tabs.

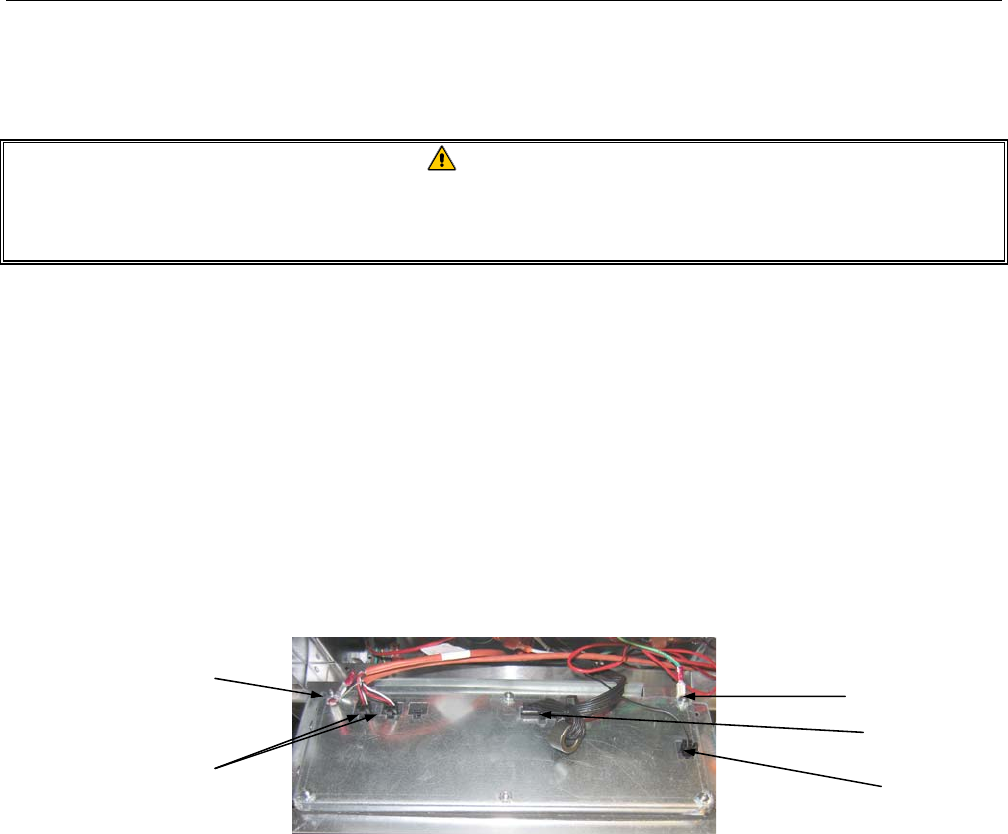

Ground Wire Terminal
20-Pin Connecto
r
Ground Wire Terminal
Communication
Harnesses
Locator Wire
