Display Features
 The FLI-180(-TS) is capable of displaying 16M (24 Bit) colors in a continuous
spectrum. The high contrast LCD enhances the image with no geometric distortion.
 FLI-180(-TS) Series directly accepts an analog 5 wire RGB with separate H/V
(Horizontal / Vertical) sync. This is the standard PC video signal.The FLI-180(-TS)
Series is auto synchronous adjusting the display to the appropriate input between
VGA and SXGA.
 The FLI-180(-TS) Series is supplied with a Anti-Glare Touch Screeen [TS models] or
an Anti-Glare impact window on non touch screen models.
 Requires an external 12 VDC power supply such AutomationDirect’s PS-MON is
required. Turn on the power.
Adjusting the Display
The FLI-180 (-TS) Series display has an embedded microprocessor in the converter
card [this is the electronics that drives the LCD]. In most cases the unit will require very
little if any user intervention to operate correctly. That is, produce a sharp stable picture.
The micoprocessor in the display has the capability to adjust itself to the computer to
which it is attached. If the picture is not satisfactory, the first step is to allow the unit to
attempt to adjust itself to your computer.
Located on the rear of the unit is a membrane keypad used for adjusting the display.
See figure 1 below:

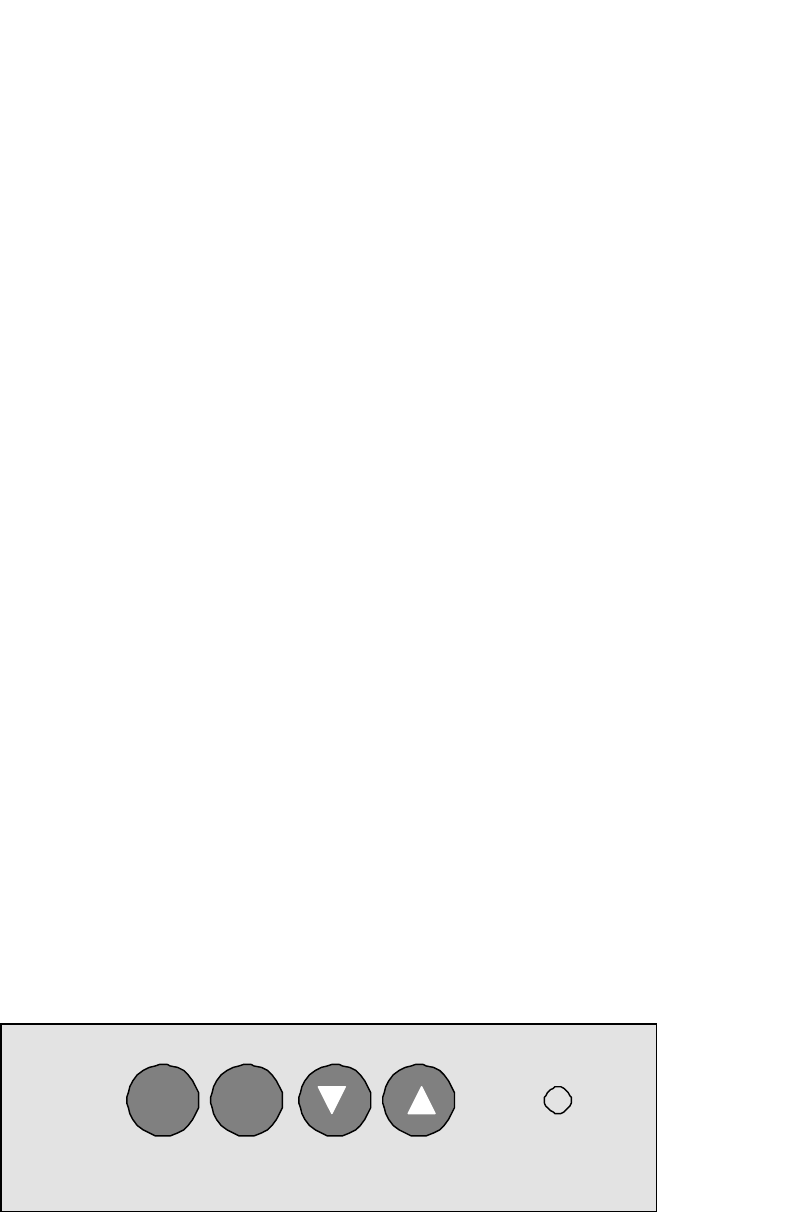

Figure 1
Select Menu
Getting
