AutoCAD2011ProductivityStudy

7 ©2010DavidS.Cohn

drawing.ThefinaldrawingneededtobepresentedonaD‐sizearchitecturalborderedsheetwhichwouldalso
includealegendidentifyingthedifferentoccupancy/usagetypesalongwiththesquarefootageforeach
occupancytype.Figure2showsthecompletedtask#2drawing.


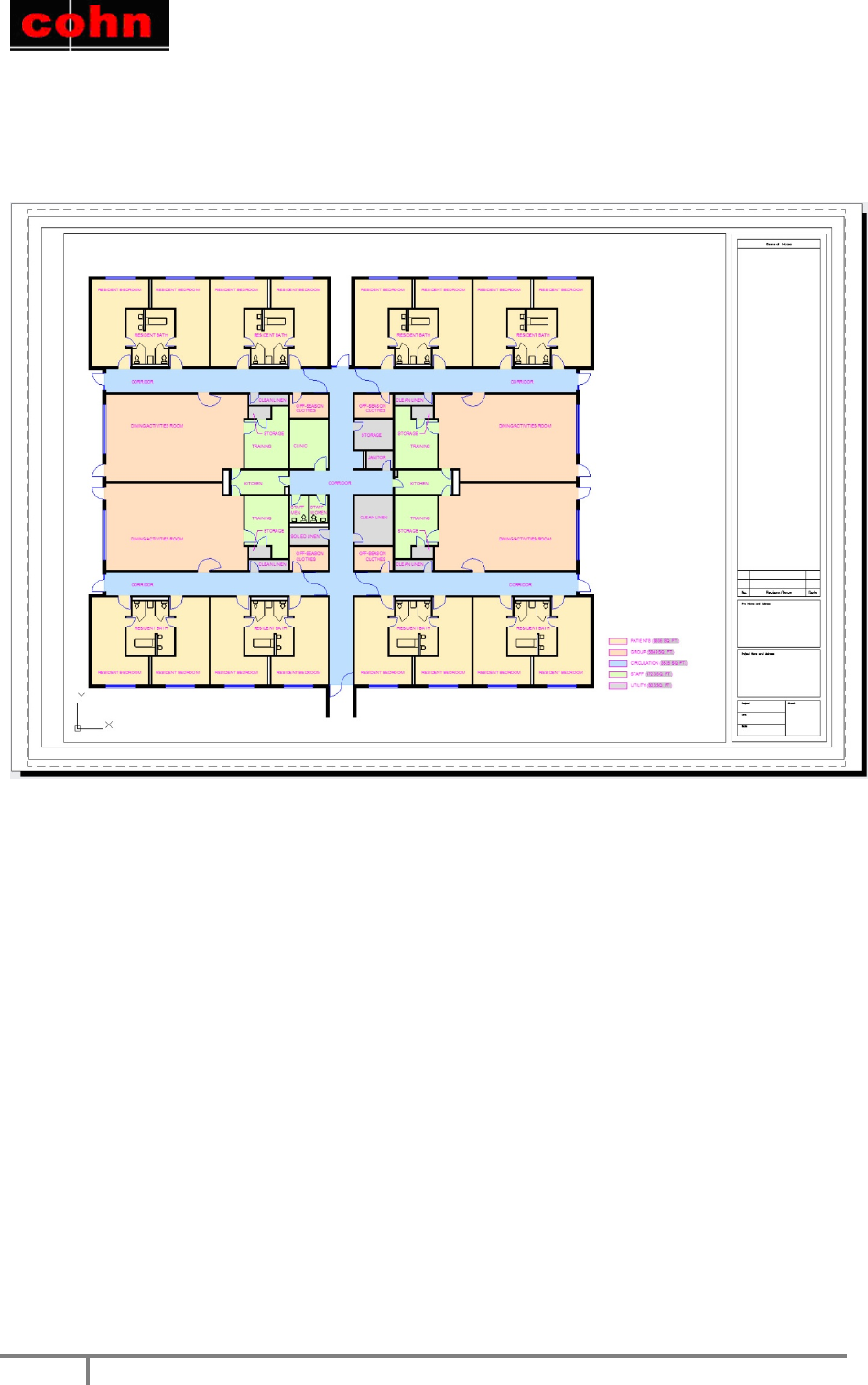

Figure2:Completedtask#2drawing–afloorplanincludingoccupancyandareacalculations.
BecauseofthenewfeaturesavailableinAutoCAD2011comparedtoAutoCAD2008,Ianticipatedproductivity
improvementsinanumberofareas:
• SettinguplayerswouldbefasterinAutoCAD2011becausetheLayerPropertiesmanagerisanon‐
modalpalettecomparedtoadialogboxinAutoCAD2008.
•
Actualdrawingandeditingtaskswouldbefasterbecausetheribboninterfaceismoreintuitiveand
putscommandswherethey’remoreeasilyaccessed.
• AreafillsaddedashatchpatternswouldbefasterandeasiertocreateinAutoCAD2011becausethey
couldbepreviewedastheywerebeingadded,
whereasinAutoCAD2008,theywouldnotbecome
visibleuntilaftertheywereadded.
• InAutoCAD2011,theabilitytocontroltransparency,tosendhatchpatternstotheback,andtobring
texttothefrontwouldmakeiteasiertoensurethattheareafillappearedbehindotherobjects,

whereasinAutoCAD2008,thiscanonlybeaccomplishedbyusingDRAWORDERandthetransparent
appearanceoffilledareascontrolledbycreatingacolor‐basedplotstyletablethatusedscreeningfor
thefillcolors.
Thisdrawingtook3hours:5minutestocompleteusingAutoCAD2008.Thesamedrawing
tookonly2hours:
32minutestocompleteusingAutoCAD2011,animprovementof18percent.


