Operation Manual

U
U
s
s
e
e
r
r
M
M
a
a
n
n
u
u
a
a
l
l
- 1 -
1 Introduction
1.1 Function and Feature
 OE level coverage for European, Asian,
American and Chinese cars
 Supports Multi-language
 CAN-BUS with high/low speed
 One OBDII connector for all CAN bus
systems
 Frequent software update online
 High resolution VGA color TFT display
 Windows CE Operating System
 Quick Test function to test most vehicle
systems
 Demo Mode for many OEM’s
 Data graphing
 Self-check function
1.2 Layout of Main Unit

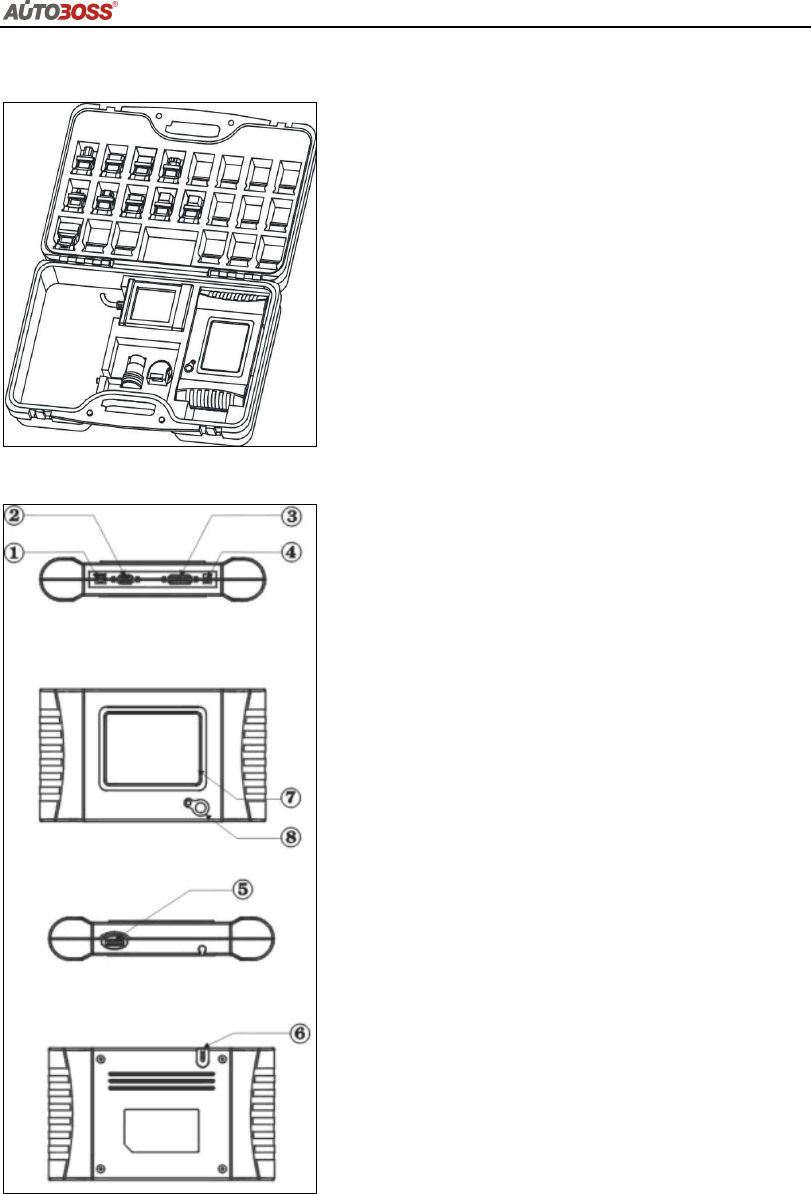

The main unit layout is as shown in left picture.
① USB Port
② COM Port
③ Diagnostic Port
④ Power Port
⑤ SD slot
⑥ Touch Pen / Stylus slot
⑦ Touch Screen
⑧ Power Switch
