- 25 -
①
①①

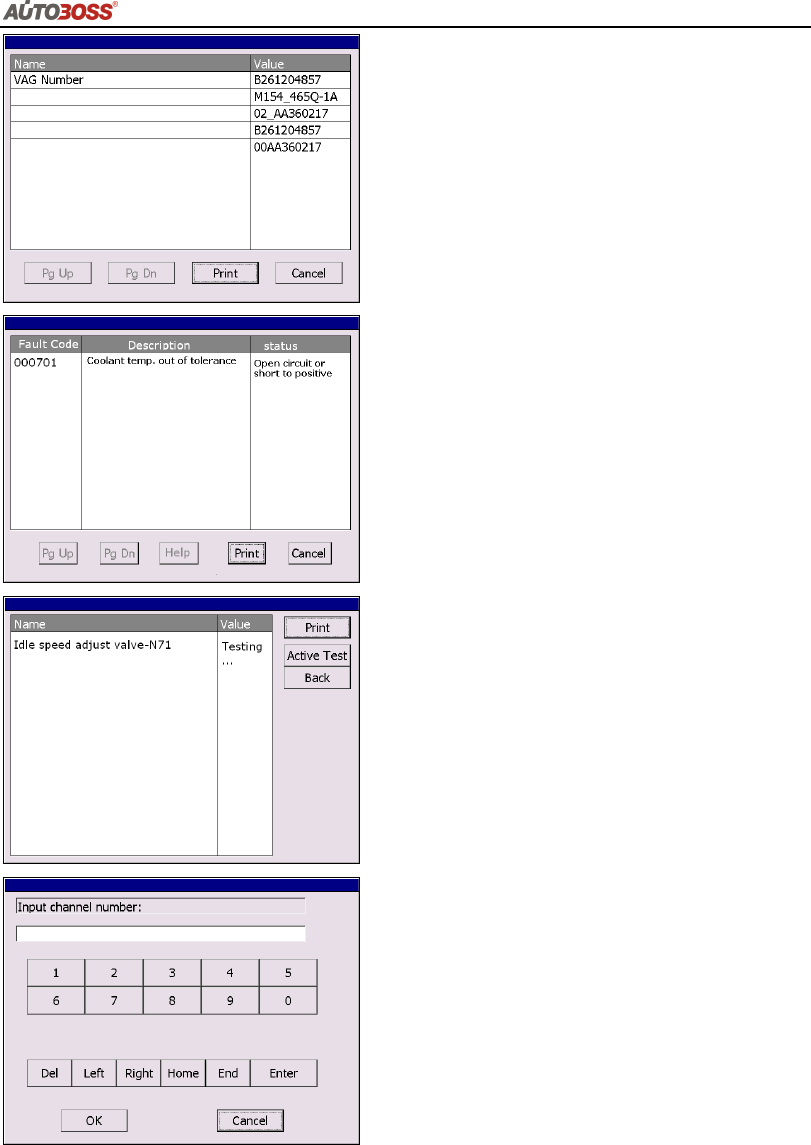

① [01-Interrogate control unit versions]
Click on [01-Interrogate control unit versions] to
see the information of control unit as shown on the
left.
Note: Read out old ECU codes with this
function when performing ECU coding.
[02②
②②
② -Interrogate fault memory]
To display the DTC saved in the current control unit,
click [02-Interrogate fault memory]. Please refer
to the left image.
③
③③
③ [03-Final control diagnosis]
Click on the button [03-Final control diagnosis] to
test relevant actuator automatically as shown on
the left image. Click on [Active Test] to begin
actuator test.
④
④④
④ [04-Introduction of basis setting]
Click on the button [04-Introduction of basis
setting] for basic setting. Input desired number
using the number keys and click on the button [OK]
to start the basic setting.
 [Del]: Delete the input numbers;
 [Left]: Move cursor to left;
 [Right]: Move cursor to right;
 [Home]: Move cursor to Home;
 [End]: Move cursor to End;
 [Enter]: confirm enters.
