(6) Select system:
[Common system Auto-Scan]: Test the
common-use ECU automatically;
[All system Auto-Scan]: Test all ECU
automatically;
[Common]: by choosing this item, all common-use
ECU will be displayed on the screen, users can
then select ECU required accordingly;
Other systems: Enter the systems as per relevant
ECU type.

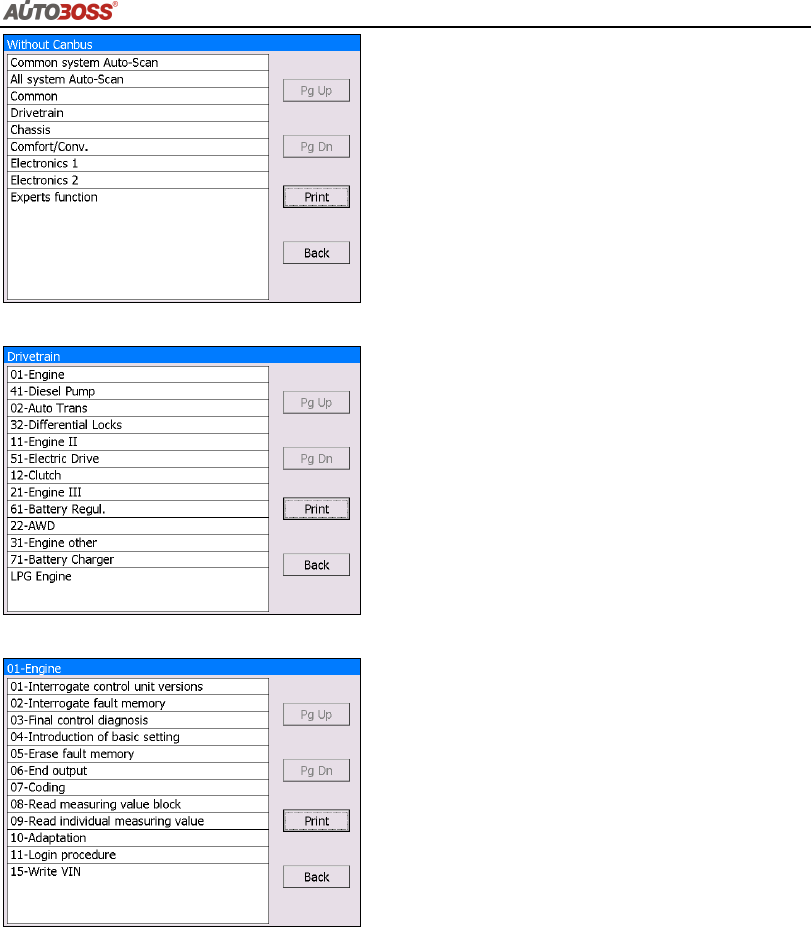

(7) Click on [Common] to enter the screen shown
on the left.
Select [01-Engine] to enter the screen with the
following functions.
[01-Interrogate control unit versions]
[02-Interrogate fault memory]
[03-Final control diagnosis]
[04-Introduction of basis setting]
[05-Erase fault memory]
[06-End output]
[07-Coding]
[08-Read measuring value block]
[09-Read individual measuring value]
[10-Adaptation]
[11-Login procedure]
[15-Write VIN]
Note: Functions 04,07,10,15 require knowledge
of the systems operation, please use with care.
