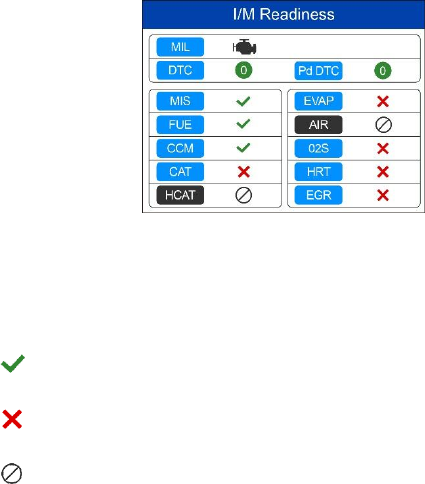

Figure 5-2
If the scan tool is idle, the results will immediately display. If it is busy, it will
wait till the current procedure finished. After viewing the status, press ESC
button to exit.
OK – indicates that a particular monitor being checked has completed
its diagnostic testing.
INC – indicates that a particular monitor being checked has not
completed its diagnostic testing.
N/A – the monitor is not supported on the vehicle.
The LED and audio tone indications are interpreted as below:
LED Interpretation
The green and red LEDs provide an easy way to check if emission-related
monitoring systems have completed their self-diagnostic testing.
1) GREEN LED – your vehicle is Ready. Indicates that engine systems
are “OK” and operating normally (the number of Monitors supported by
the vehicle that have run and performed their self-diagnostic testing is
in the allowed limit).
2) RED LED – your vehicle is Not Ready. Indicates that the number of
Monitors supported by the vehicle that have run and performed their
self-diagnostic testing is out of the allowed limit.
Audio Tone Interpretation
The audio tone can be configured according to the I/M Readiness Status.
