49

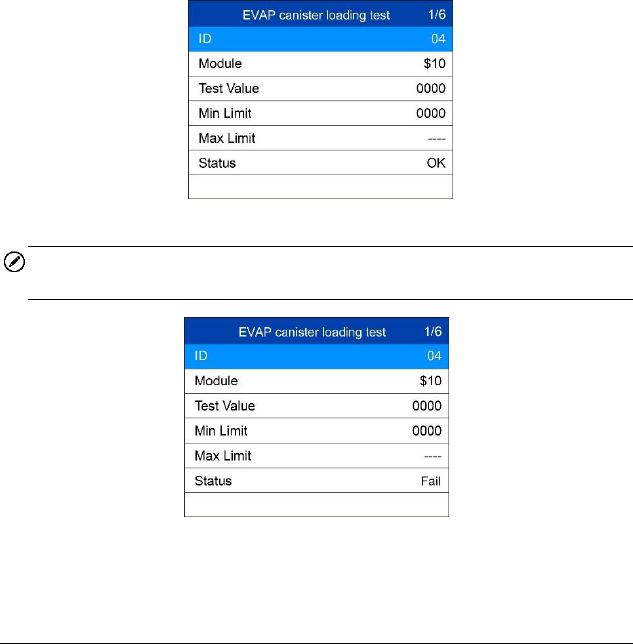

Figure 4-34
NOTE
If the On-Board Monitor Test fails, this monitor item will be listed in red.
Figure 4-35
8) Press ESC button to return to the previous menu.
Component Test
The Component Test initiates a leak test for the vehicle's EVAP system.
The scan tool itself does not perform the leak test, but commands the
vehicle's on-board computer to start the test. Different vehicle
manufacturers might use different criteria and methods for stopping the test
once it has been started. Before starting the Component Test, refer to the
vehicle service manual for instructions to stop the test.
1) Use the UP/DOWN scroll button to select Component Test from
Diagnostic Menu and press the OK button.
2) Wait for the scan tool to display the Component Test menu.
