1) Use the UP/DOWN scroll button to select On-Board Mon. Test from
Diagnostic Menu and press the OK button.
2) Wait while the scan tool validates the PID MAP.
3) The scan tool will prompt you to select the vehicle make.
4) After you select the vehicle manufacturer, the scan tool displays the
On-Board Monitors test results for specific monitored systems.

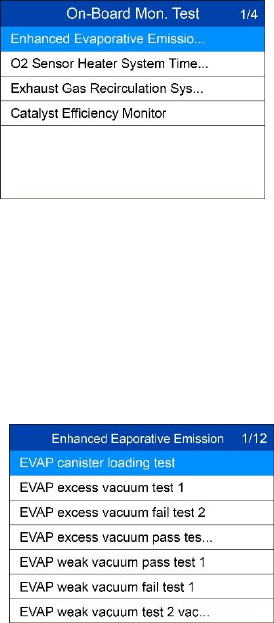

Figure 4-32
5) From On-Board Mon. Test menu, use the UP/DOWN scroll button to
select a test to view and press the OK button. Or, use the LEFT/RIGHT
scroll button to view previous/next screen of test items.
If the vehicle being tested does not support the mode, an advisory
message will display on the screen.
For CAN-equipped vehicles, test selections can be as depicted
below:
Figure 4-33
6) Use the UP/DOWN scroll button to select the desired monitor from
On-Board Mon. Test menu and press the OK button.
7) View test data on screen.
