36

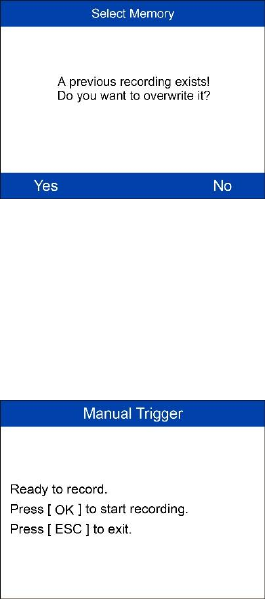

The asterisk (*) icon on the screen indicates that a previous
recording is stored in the highlighted location.
If you select a location marked with an asterisk (*) icon, a message
prompting to overwrite old recording displays.
Figure 4-19
If you wish to proceed with overwriting the recording, press the OK
button; if you do not wish to overwrite it, use the LEFT/RIGHT
button to select NO or press the ESC button to pick another
memory location.
4) Observe on-screen instructions.
If Manual Trigger is selected, following screen displays:
Figure 4-20
If DTC Trigger is selected, following screen displays:
