32
View Complete Data Set
1) To view complete set of data, use UP/DOWN scroll button to select
Complete Data Set from View Data menu and press the OK button.

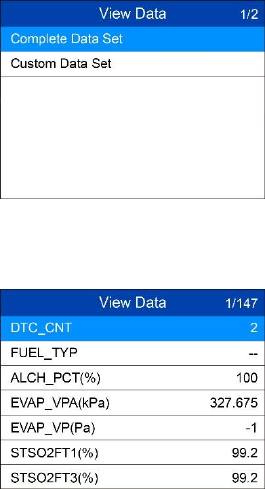

Figure 4-10
2) View live PIDs on the screen. Use the UP/DOWN scroll button for more
PIDs if additional information is available on more than one page.
Figure 4-11
The number “x” to the right of the screen indicates the sequence of
the highlighted item.
To view full name of the highlighted PID, press the ? button.
If the G icon displays when a PID is highlighted, graph data is
available. Press OK to view graph.
