27

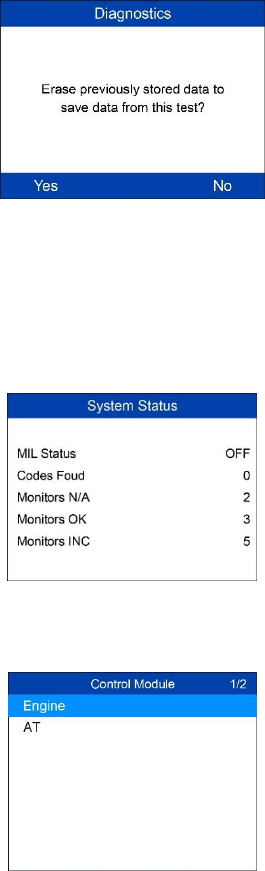

Figure 4-1
8) To erase the data, press the OK button; if you do not want to erase the
data, press ESC to exit or use LEFT/RIGHT button to select NO and
press OK to continue.
9) View a summary of system status (MIL status, DTC counts, Monitor
status) on screen. Wait a moment or press any key for Diagnostic
Menu to display.
Figure 4-2
If more than one module is detected, you will be prompted to
select a module to test.
Figure 4-3
Use the UP/DOWN scroll button to select a module and press the
OK button.
