20

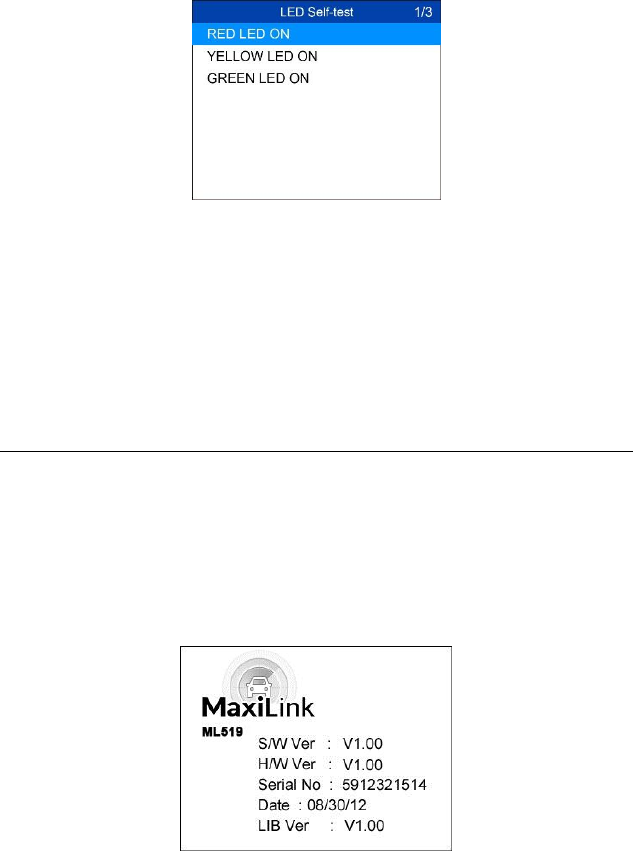

2) In the LED Test menu, use the UP/DOWN scroll button to select one or
more LED lamps to test. The LED should turn on or off according to the
selected commands.
Figure 2-12
3) When completed, press the ESC button to exit.
Update Mode
This function allows you to update the software of the tool, refer to Update
on page 25 for details.
About
The About function allows viewing of some important information such as
serial number and software version number of the scanner.
1) From Main Screen, use the UP/DOWN scroll button and LEFT/RIGHT
scroll button to select About and press the OK button; wait for the
About screen to appear.
2) View tool information on screen.
Figure 2-13
