19

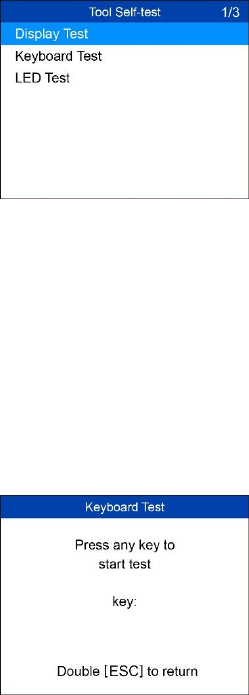

Figure 2-10
3) When completed, press the ESC button to exit.
B. Keyboard Test
The Keyboard Test function verifies if the keys are functioning properly.
1) Use the UP/DOWN scroll button to select Keyboard Test from the
Tool Self-test menu, and then press the OK button.
2) Press any key to start test. When you press a key, the key name
should display on screen. If the key name does not display, the key is
not functioning.
Figure 2-11
3) Double press ESC to return to previous menu.
C. LED Test
The LED Test function verifies if the I/M Readiness LED indicator lamps
are functioning properly.
1) Use the UP/DOWN scroll button to select LED Test from the Tool
Self-test menu, and then press the OK button.
