2 Using the Scan Tool
Tool Description

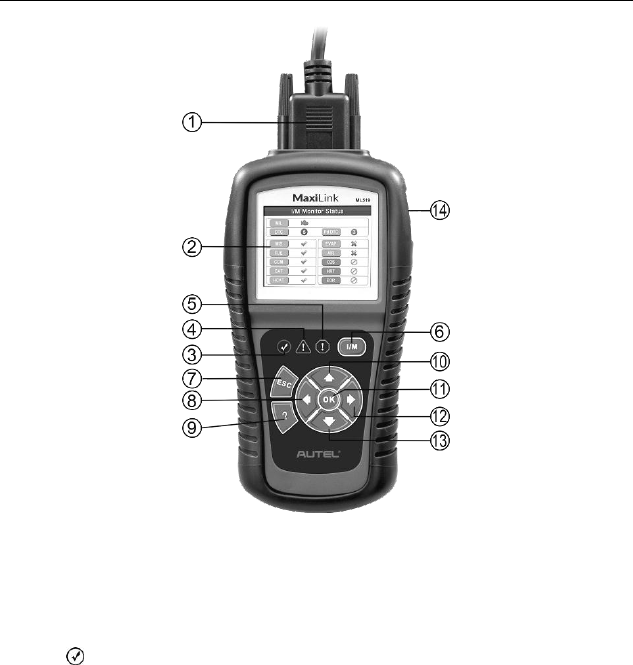

Figure 2-1
1) OBD II CONNECTOR – connects the scan tool to the vehicle’s Data
Link Connector (DLC).
2) LCD DISPLAY – displays menus and test results.
3) GREEN LED – indicates that engine systems are running normally
(The monitors on the vehicle are active and performing their diagnostic
testing is in the allowed limit, and no DTCs are present).
