RTK indicator light Description
Green: Number of satellites>16, good signal (normal flight)
Yellow: Number of satellites 6-15, poor signal (it is recommended to adjust the base
station to an open area)
Red Slow flashing: number of satellites <6, poor signal (recommend the base station
to be placed in an open area)
Light off: no RTK signal (indoors or abnormal base station RTK)
use to
connect to a ground station or aircraft
connection method
Take the normal mode as an example, the specific operation is as follows.
To link the base station and the aircraft link

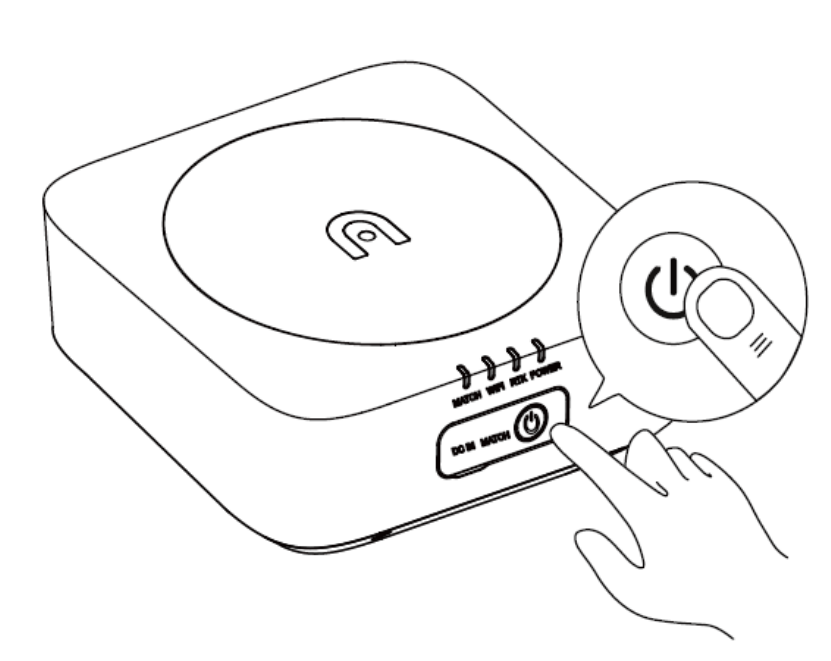

1、 click thebutton of the base station, and the linking light flashes;
2、 press (short press) the linking button in the battery compartment of the aircraft to
make the aircraft enter the linking state, and the linking light of the aircraft body
flashes during the linking process ;
3、 After successful linking, the linking light on the base station will flash green for
0.1s/2.0s.
