Dragon Fish Mobile Station Quick Guide
Disclaimer To ensure safe and successful operation of your base station, please strictly follow the operating instructions and steps in this manual. If the user does not abide by the safety operation instructions, DTO Smart will not be responsible for any product damage or loss during use-whether direct or indirect, legal, special, accident or economic loss (including but not limited to loss of profit)Provide warranty service.
4. Use the base station in an open environment free from radio interference. Be sure to turn off other wireless devices in the same frequency band before using it. 5. Please make sure that the antennas of all devices are not blocked during use. 6. Use original accessories or accessories certified by Autel. The use of non-original accessories may cause danger to the safe use of the system. 7. Make sure that no foreign objects (such as water, oil and other liquids, sand, etc.) enter the parts. 8.
3 base station tripod 1 4 base station feeder 2 5 base station antenna 2 multi-function 6 7 8 component description charger TYPE-C 1 PCS charging cable Document (Quick Guide) 1 PCS 1
base station body 1. Linking indicator 2. WiFi indicator 3. RTK indicator 4. Power indicator 5. USB-C charging port 6. Linking button 7.
9. Antenna N-type connector 10. Turntable mounting hole 11.
1. Fixing screw 2. Knob 3. Telescopic pole 4. Foot nail ready for charging Short press (<1 second) the power button once to check the battery level.
Red: Electricity>10% Red flashing slowly: Electricity <10% charging method charge When using thefor the first time, be sure to fullythe battery. Please use a dedicated charger to charge the base station. 1、 Plug the Type-C power cord into the Type-C port of the base station, and the base station will automatically enter the charging mode (either when it is turned on or off). 2、 When charging, the base station power indicator light flashes, and the battery power is indicated by different colors.
RTK indicator light Description Green: Number of satellites>16, good signal (normal flight) Yellow: Number of satellites 6-15, poor signal (it is recommended to adjust the base station to an open area) Red Slow flashing: number of satellites <6, poor signal (recommend the base station to be placed in an open area) Light off: no RTK signal (indoors or abnormal base station RTK) use to connect to a ground station or aircraft connection method Take the normal mode as an example, the specific operation is as f
1、 turn on the power of the station; 2、 turn on the remote control and run the Autel Voyager App, select "Settings -> Base Station", you can see the base station wifi hotspot after entering, enter the password: 12345678, wait a few seconds until the remote control is successfully connected to the base station;; 3、 exit Setting interface, enter the mission flight interface, click the gear icon in the upper right corner, enter the settings menu, click "remote control", and turn on the "use base station connec

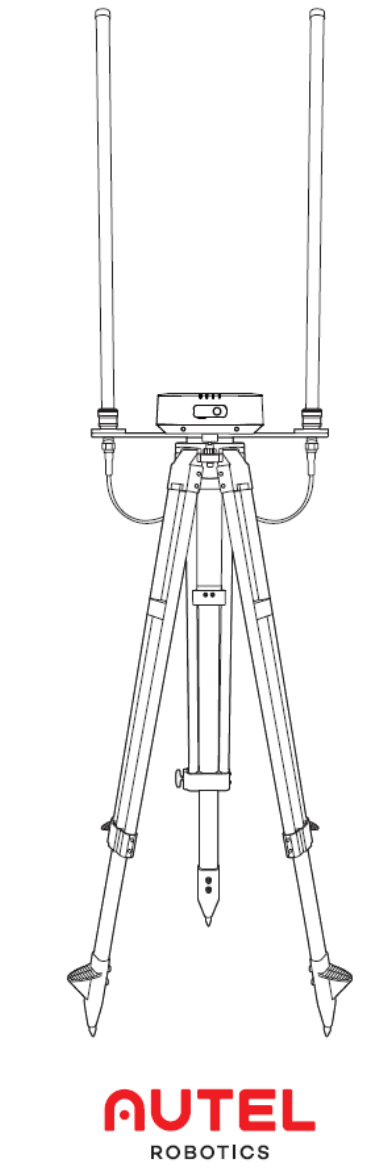

2. Install the base station body to the tripod and tighten the lock nut on the body. Ensure that the base station is level and stable.
3. Install the antenna on the tripod and connect the antenna feeder to the base station antenna port.
Note: • After the tripod is leveled, do not change the position and angle of the tripod or base station, otherwise you need to level it again.
antenna to avoid GNSS signals from being absorbed or blocked. • The installation environment of the base station should be at least 200 m away from high-power radio sources (such as TV stations, microwave stations, etc.), and at least 50 m away from high-voltage transmission lines to avoid electromagnetic field interference to GNSS signals.
BeiDou: B1, B2, B3 GLONASS: F1, F2 Galileo: E1, E5A, E5B positioning single point accuracy level: 1.5 m (RMS) Vertical: 3.0 m (RMS) RTK horizontal: 1 cm + 1 ppm (RMS) Vertical: 1.5 cm + 1 ppm (RMS) 1 ppm: each increase of X km, the accuracy becomes worse by X mm. For example distance from the base station is X , if the km, the accuracy is X cm. Positioning update 1 Hz, 2 Hz, 5 Hz, 10 Hz and 20 Hz rate cold start <40 s hot start <5 s recapture <1 s initialization > 99.
distance between Base station and ground station: 200m (no interference, no obstruction; the height of the base station is 2m from the antenna to the end of the tripod, and the height difference with the remote control is within 10m, on the ground The height of the station above the ground is 0.2 m) Memory capacity No inertial Functional Built-in 6-axis IMU measurem characteristics ent unit electrical Power 7.
FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
Note: The content is subject to update without notice. You can check the latest version on the official website of Autel Intelligent https://www.autelrobotics.
