AUTEC - Air series

Technical data 3

LIRRLE00-01

2 Technical data

AC power supply .................................................................................... 24-240V (1.2A)

AC power supply protection fuse ...................................................... 2A T 250V (5x20mm)

DC power supply ........................................................................................ 12-24V (4A)

DC power supply protection fuse ...................................................... 4A T 250V (5x20mm)

Digital inputs voltage .................................................................................... 24/48/110V

............................................................................................................................ 12/24V

Antenna ............................................................................................. internal or dedicated

STOP contacts rated current .......................................................................... 6A (250V )

......................................................................................................................... 6A (30V )

STOP contacts protection fuses ....................................................... 6A T 250V (5x20mm)

SAFETY contacts rated current .................................................................... 10A (250V )

....................................................................................................................... 10A (30V )

SAFETY contacts protection fuses ................................................. 10A T 250V (5x20mm)

Housing material .......................................................................................... PA 6 (20%fg)

Protection degree ....................................................................................... IP65 (NEMA 4)

Weight ......................................................................................................... 4.5kg (9.92Lb)

Command outputs are provided on the optional cards. Refer to technical data sheet for voltage

and current rating of command outputs.

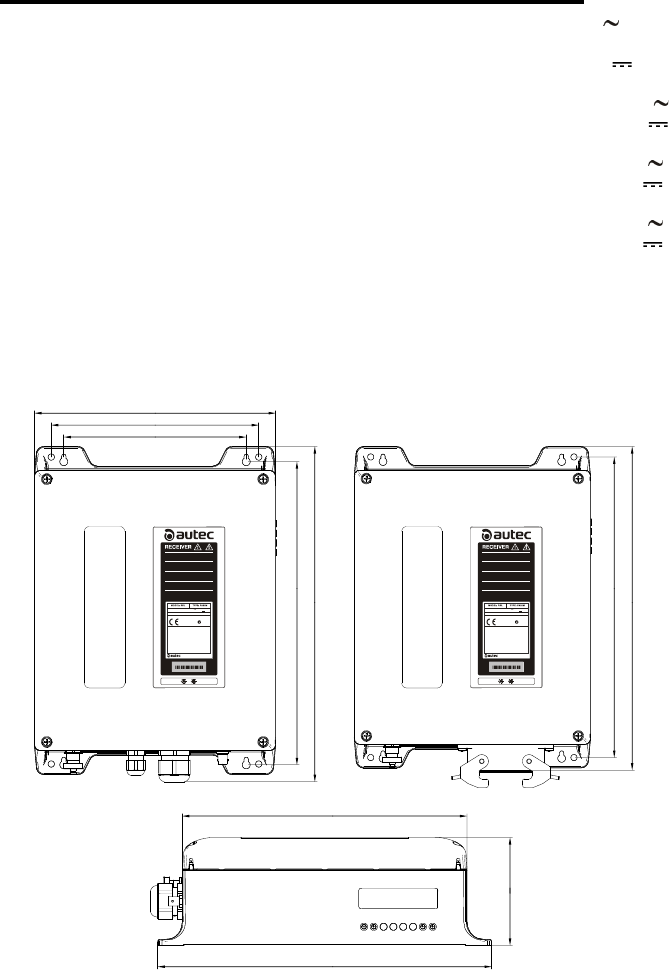

110mm (4.33in)

340mm (13.39in)

290mm (11.42in)

189mm (7.44in)

215mm (8.46in)

250mm (9.84in)
