User's Manual

2
LIRRLE00-01
Description
AUTEC - Air series

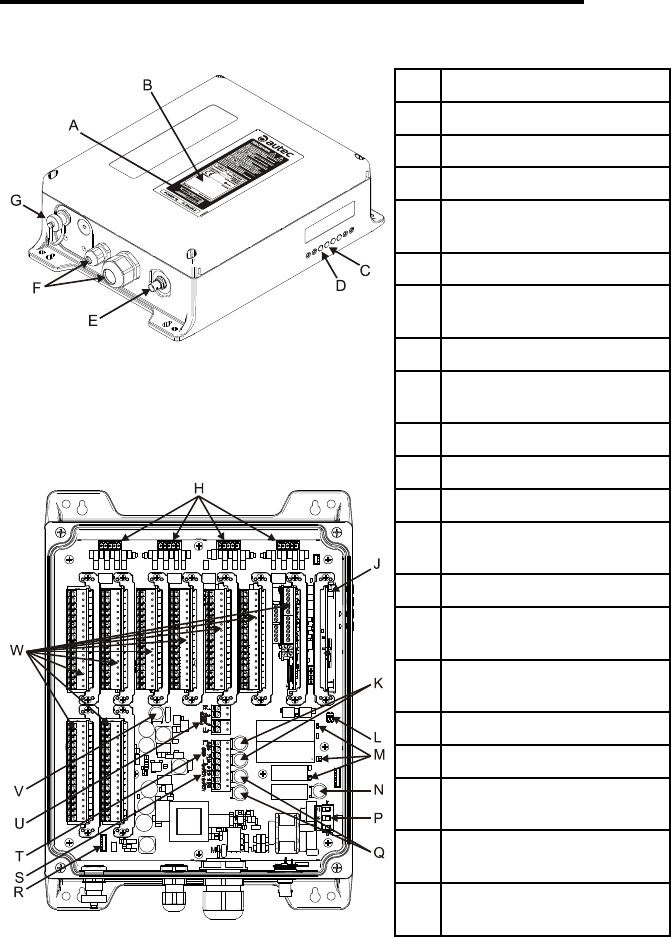

1 Description
A Identi󰘰cation plate
B Technical data plate
C POWER LED
D ENABLE LED
E
BNC connector for external
antenna kit (optional)
F Cable gland or plug
G
Connector for cable control
(optional)
H Digital inputs
J
Electronic module and address
key
K STOP contacts protection fuses
L DIP switches
M Internal light signals
N
AC power supply protection
fuse
P Connector for AC power supply
Q
SAFETY contacts protection
fuses
R
Connector for the cable
control's wiring
S SAFETY outputs
T STOP outputs
U
Connectors for DC power
supply
V
DC power supply protection
fuse
W
Optional card (with related
command outputs)
