User's Manual

Dynamic Series
Part C: FJR transmitting unit
Plates
C - 4

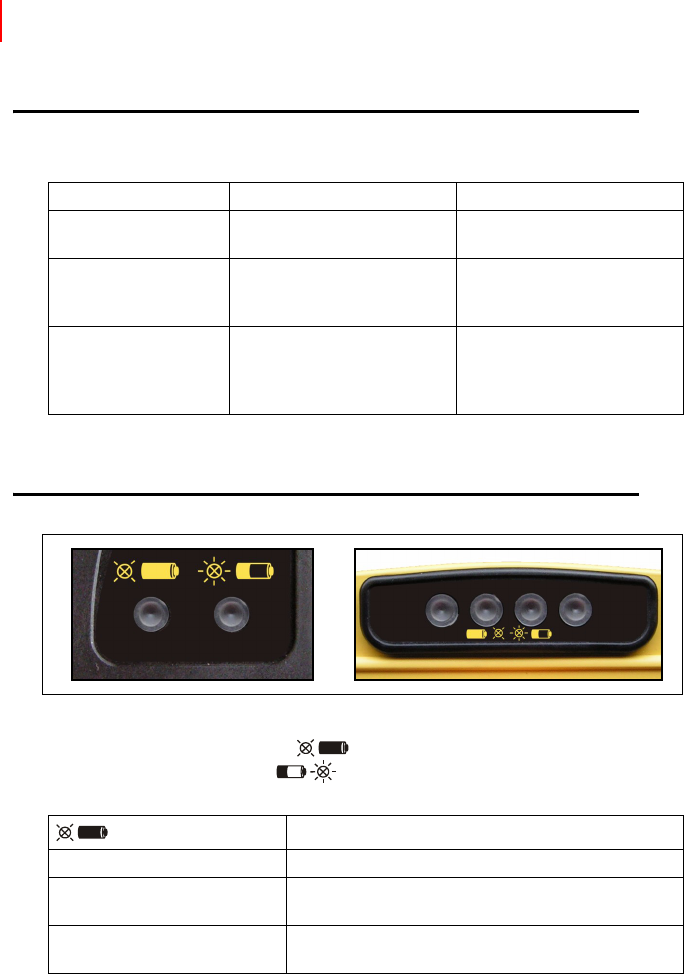

4Plates
The transmitting unit has three plates.
5 Light signals
The FJR transmitting units may have two or four LEDs.
In both cases, two LEDs are always available, providing information regarding the
radio remote control.
- a green LED identified with
- a red LED identified with
Plate Position Content
radio remote control
identification plate
On the S-KEY: remove the S-
KEY to read the plate.
Radio remote control serial
number (S/N).
transmitting unit iden-
tification plate
In the battery housing: remove
the battery to read the plate.
Manufacturing year, bar code
and transmitting unit identifi-
cation number (TU ID).
technical data plate
In the battery housing: remove
the battery to read the plate.
MODEL, TYPE and main
transmitting unit technical
data, marking and possible
radio remote control marks.
The green LED ...
Meaning
... is off The transmitting unit is switched off.
... blinks fast
The transmitting unit is switched on and there is no
radio link.
... blinks slowly
The radio remote control is started and the radio link is
present.
