< 1.7 > Easy Change on PDU Power Feed Position
Power Feed Entry Flexibility - By Meter Setting
Customization of top feed power entry is available on request.
The change of the power feed entry position is possible after
installation. The W series meter provides the fl exibility to sim-
ply turnover on top feed PDUs with the use of meter inversion
buttons and an alternative membrane.
B
A
B
A
B
A

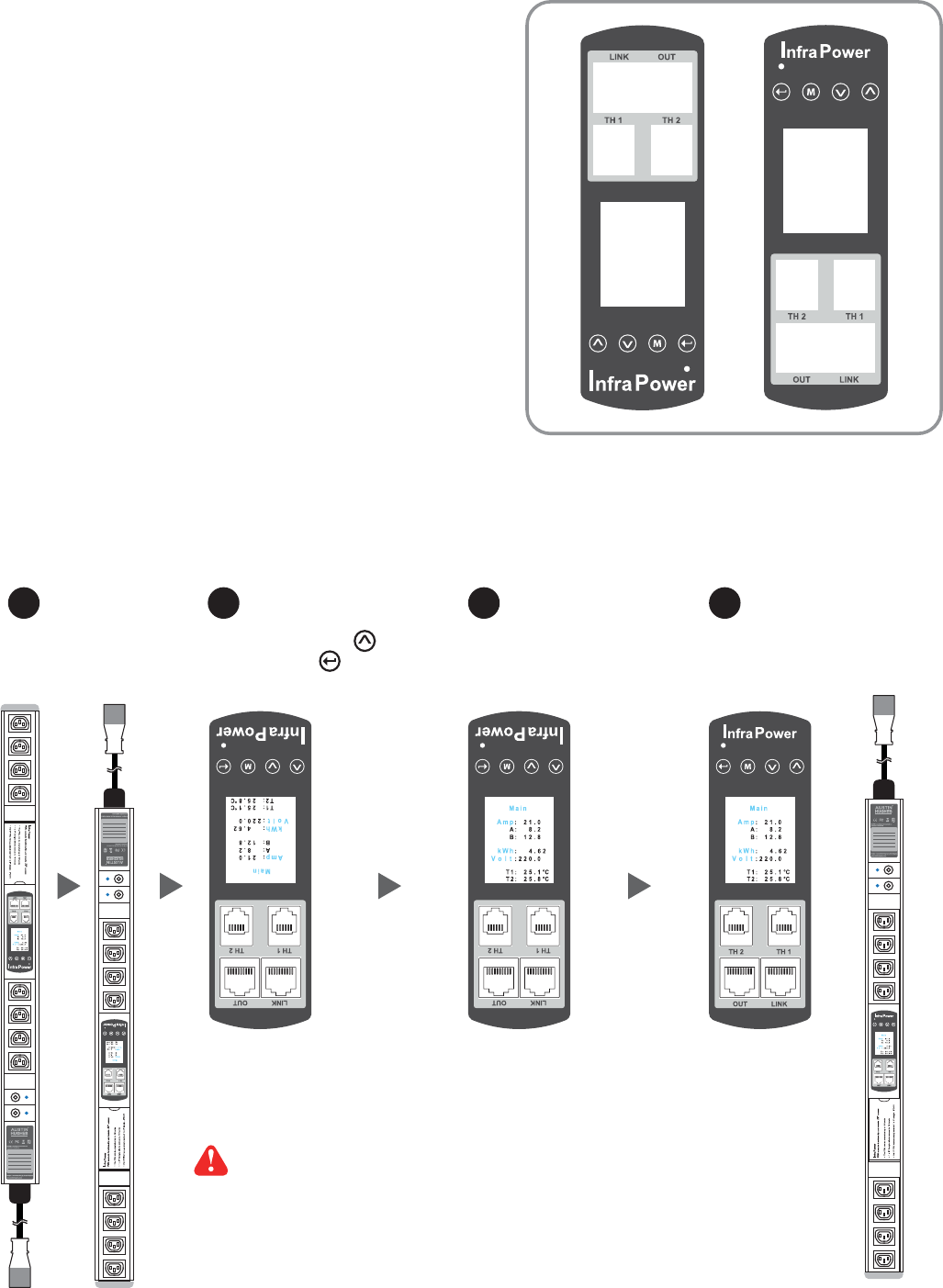

Press fi rst button
& last button to
invert display
Replace the meter
membrane
Completed
Membrane
A Membrane A Membrane B
Turn the PDU
upside-down
1 32 4
Please take the reverse steps to change top-feed to bottom-feed entry.
Outlet no. stickers are provided on request.
Meter
Membrane A
Meter
Membrane B
