Installation & Assembly

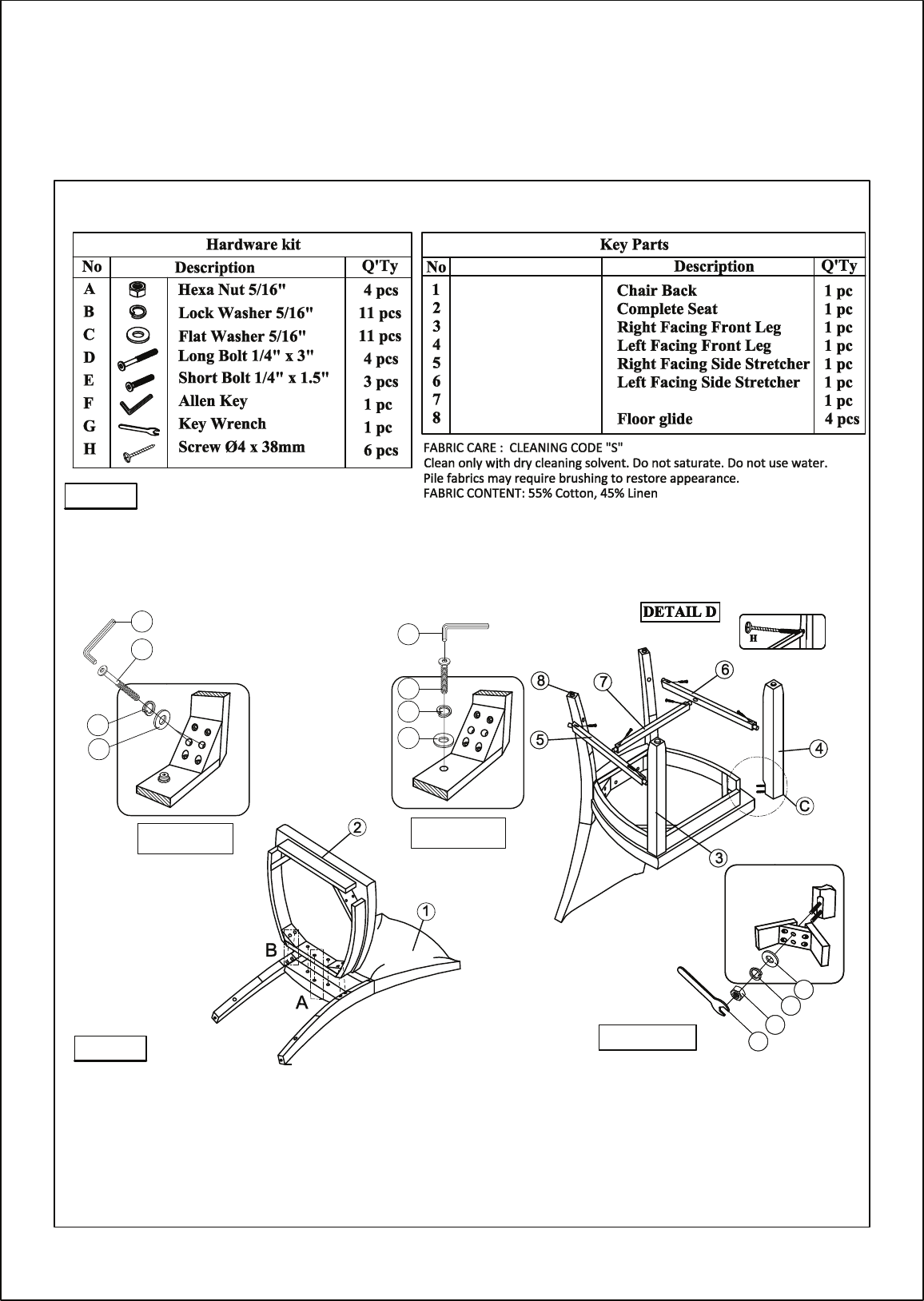

ASSEMBLY INSTRUCTIONS
UPHOLSTERED CHAIR
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts
that may have come loose inside the carton during shipment
- Carefully lay Chair Back flat on a smooth flat surface to prevent scratches.
- Attach Complete Seat to Chair Back by inserting a Flat Washer (C), Lock Washer (B) with Short Bolt (E) into
each of the hole on the back rail of the seat, and Long Bolt (D) into each of 2 holes in the Complete Seat corners.
(See Detail A & B).
- Tighten screws with provided Allen Key (F) by turning clockwise until secure
STEP 1
- Carefully turn chair upside down and insert the right stretcher into the back leg and then attach the right front leg
to corner block and the right stretcher.
- Insert the center stretcher into the right stretcher
- Insert the left stretcher to back leg and the center stretcher and then attach the left front leg to corner block and the
left stretcher.
- Place Flat Washer (C), Lock Washer (B) and Nut (A) on for each bolt, using provided Key Wrench (G).
- Tighten the Nuts at this stage until all the parts are in position (See Detail C).
- Fasten stretchers with Wood Screw(H) on either and using Phillips head screw driver. (not provided).(See Detail D)
- Be sure to tighten all screws and nuts prior to using Chair.
STEP 2
DETAIL B
C
D
B
F
E
B
C
F
DETAIL A
DETAIL C
C
B
A
G
C
B
A
G
Center Stretcher
