The equalizer works for functional groups and therefore we will have:
- an equalizer for the Front Left Channel;
- an equalizer for the Front Right Channel;
- an equalizer for the Rear Left Channel;
- an equalizer for the Rear Right Channel;
- an equalizer for the Center;
- an equalizer for the Subwoofer.
The software is able to manage both an IIR and FIR conguration chosen during the "I / O Conguration Wizard"
phase, and the equalizer setup varies depending on the choice made.
8.8.2 CHANNELS AND FRONT EQUALIZER
Difference between IIR and FIR lters
Similarly to crossover lters (see sec 8.7.1), graphic
and parametric equalizers based on IIR lters
alter the signal phase behaviour with signicant
effects on audio quality. A heavily equalized signal
is characterized by an unclear stereo image and
lack of transients denition. Audiophiles often
classify this feeling as a veil that blurs the musical
message and deprives it of the necessary emotion.
The use of FIR lters guarantees an important
result: the phase behaviour is linear, free from
rotations or indecisions. This also makes the use
of lters with a very high slope (up to 48 dB / Oct)
possible, without altering the phase response. Such
a high slope for the lter enables the midrange
and tweeters mounted on the a-pillar to work at
lower frequencies without any issues with power
handling, thus raising the emission front. Therefore
thanks to the FIR lters the advantages of three
or multiple-way systems are completely exploited
taking in-car listening experience to a different
level. When listening, a system that uses FIR lters
provides great clarity in transients reproduction,
such as the acoustic piano hammer strikes or the
drums. The stereophonic image is deeper and
denite. Instruments in the virtual stage are more focused and seem to have more space between them. Even the
intervention of any equalizer over the frequency response, when available in FIR technology, does not modify the
audio signal phase, allowing more precise and detailed corrections without conditioning the audio quality.
+10
+5
0
-5
-10
dB
Hz
20 3 0 50 7 0 100 200 4 00 700 1 k 2k
3
k 5k
7
k 10k 20.0k
+
90
+
45
0
-
45
-
90
dB
Hz
20 3 0 50 7 0 100 200 400 7 00 1 k 2k
3
k 5k
7
k 10k
20.0
k
FIR
IIR
Phase Magnitude

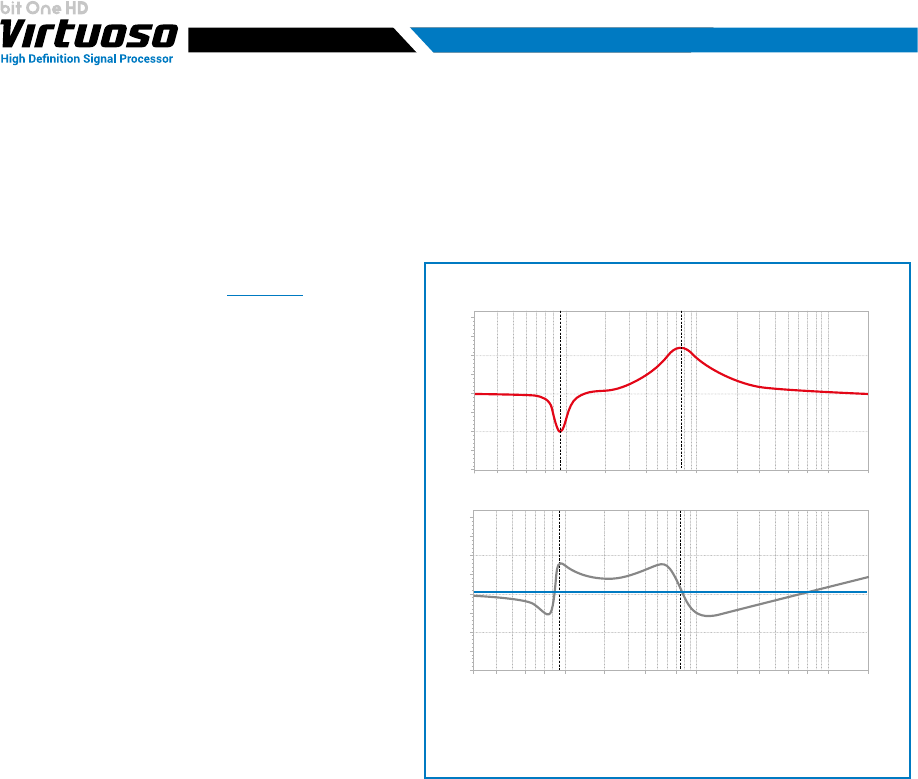

Electric frequency response simulation (module and phase) of
the two poles of the parametric equalizer featuring IIR lters (in
black) and FIR lters (in blue).
FIR EQUALIZATION vs IIR EQUALIZATION
The CHANNEL EQ equalizer works for functional groups and for each channel according to the selection chosen
for the display. It is possible to perform an equalization by selecting a single speaker in the system or selecting the
entire front of the audio system.
8
