By selecting the icon , the customization menu of the output channel lters will appear as shown to the side. It
will be possible to intervene to set the time delays by clicking on DELAY SETTINGS.
Time delays entry default mode “From listening Point cm/inch"
This setting is based on an automatic system that allows you to calculate the time it takes for the loudspeaker to
reach the ear.
8.7.2.2 TIME DELAYS ENTRY POP UP MODE

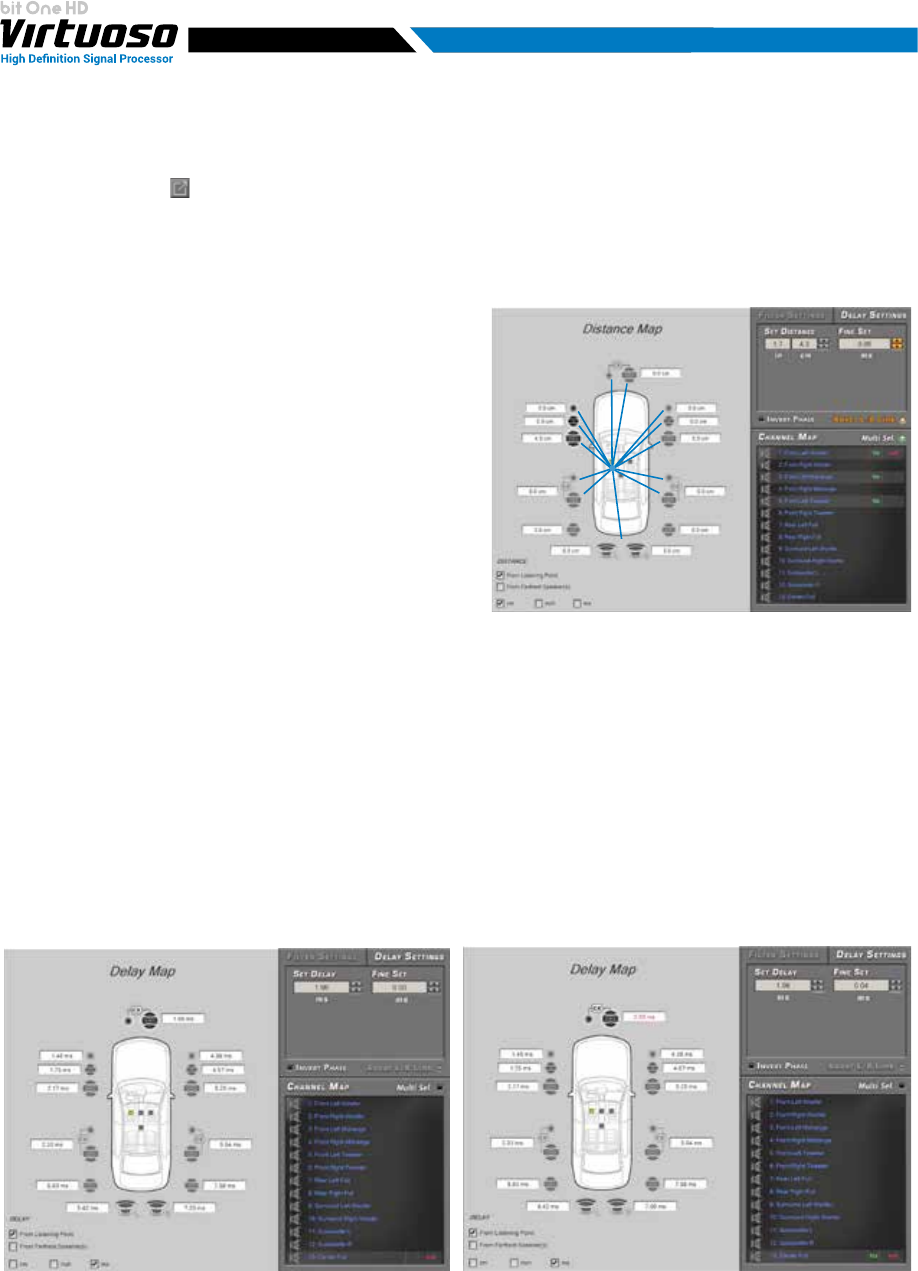

1. choose the system listening point. To identify the listening
point, choose an ideal point located at the center of the
listener’s (driver or passenger) head. For the front central
and rear central points choose an intermediate point
between the two listeners.
2. measure the distance between each loudspeaker or group
of loudspeakers and the listening point in a straight line
(“as the crow flies”). For each loudspeaker choose the
center of the mobile membrane as the emission point.
For the groups of loudspeakers choose an intermediate
point between them. Afterwards, ne-tuning can be
performed by selecting the Fine Set function.
3. select the channel related to the loudspeaker under exam
from the Channel Map and enter the related distance
value on the Set Distance box from the Filter Settings menu.
4. repeat step 3 for each channel.
5. perform all the time delays settings, start the music reproduction and select the Fine Set box. If you move the
values to positive or negative (except for the subwoofer as it is the farthest speaker), you can nd the best time
alignment that will ensure a correct acoustic scene. The ne set tuning can be managed through the multiple
selection of the audio system emission front (Ie. Front Left Tweeter + Front Left Midrange + Front Left Woofer).
Select the front (Left or Right) channels keeping the CTRL key pressed with the mouse pointer, then proceed to
the ne set tuning. It is advisable to listen to different types of musical tracks (percussions, melodic etc.) for a
much more correct evaluation of the different musical instruments coherency (space stability).
Once all the speaker distances have been entered, it is possible to obtain automatically by clicking on the check boxes:
- From Listening Point (ms): the related delay between the listening point and the system speakers. If a ne set
is entered, the value on the Channel Map will become red.
