5.4.1. PRE IN - Ch1/Ch6 analog STEREO signal
5.4.3. "AUTO INPUT SWITCH” AUX SIGNAL
Activate the ”AUTO INPUT SWITCH” function on the AUX input via PC software to enable the bit One HD Virtuoso
AUX input, each time the source AUX input is activated. When using this function the bit One HD Virtuoso volume
can be controlled through the source volume
(see section 7.2.4).
Selection of the MASTER PRE IN input
1. Through the DRC MP, selecting the MASTER input.
2. Through the MASTER input, using the bit One HD Virtuoso PC software
5.4.2. AUX - Left/Right - analog STEREO signal
Selection of the AUX IN input
1. Through the DRC MP, selecting the AUX input.
2. Through the AUX SEL terminal
(see section 4.3.4). This control is
enabled by connecting the terminal at + 12V.
3. Through the bit One HD Virtuoso PC software, selecting the AUX input.
4. Through the selection of the AUX input from the OEM source, using the “Auto Input Switch” function, via
the bit One HD Virtuoso PC software (see section 5.4.3 - 7.2.4).
Connect the Head
Unit AUX input to the
RVA connector of the
bit One HD Virtuoso
as follows, using the
wiring supplied in the
giftbox.
The selection of the
source AUX input
will then allow the
automatic selection
of the bit One HD
Virtuoso auxiliary
input.
Remark: when activating the “Auto Input Switch” function, the DRC/PC Software can no longer be used for the switch
of the audio system inputs. The switch can be enabled through the audio system source, selecting the AUX or
Master input.
*
If the car HEAD
UNIT does not
feature an AUX
analog input,
connect a USB
memory (or SD
Card) to the USB
reader of your audio
source as shown
to the side. The
USB/SD device
must contain the
.mp3 format le in
the RVA TONE folder located inside the Setup CD (these les can also be downloaded from the Audison website).
Please note that the storage device must contain only this le and no other les. If you use the USB memory to
activate the switching via the RVA function, just select the USB (SD) input of the main source (Head Unit).

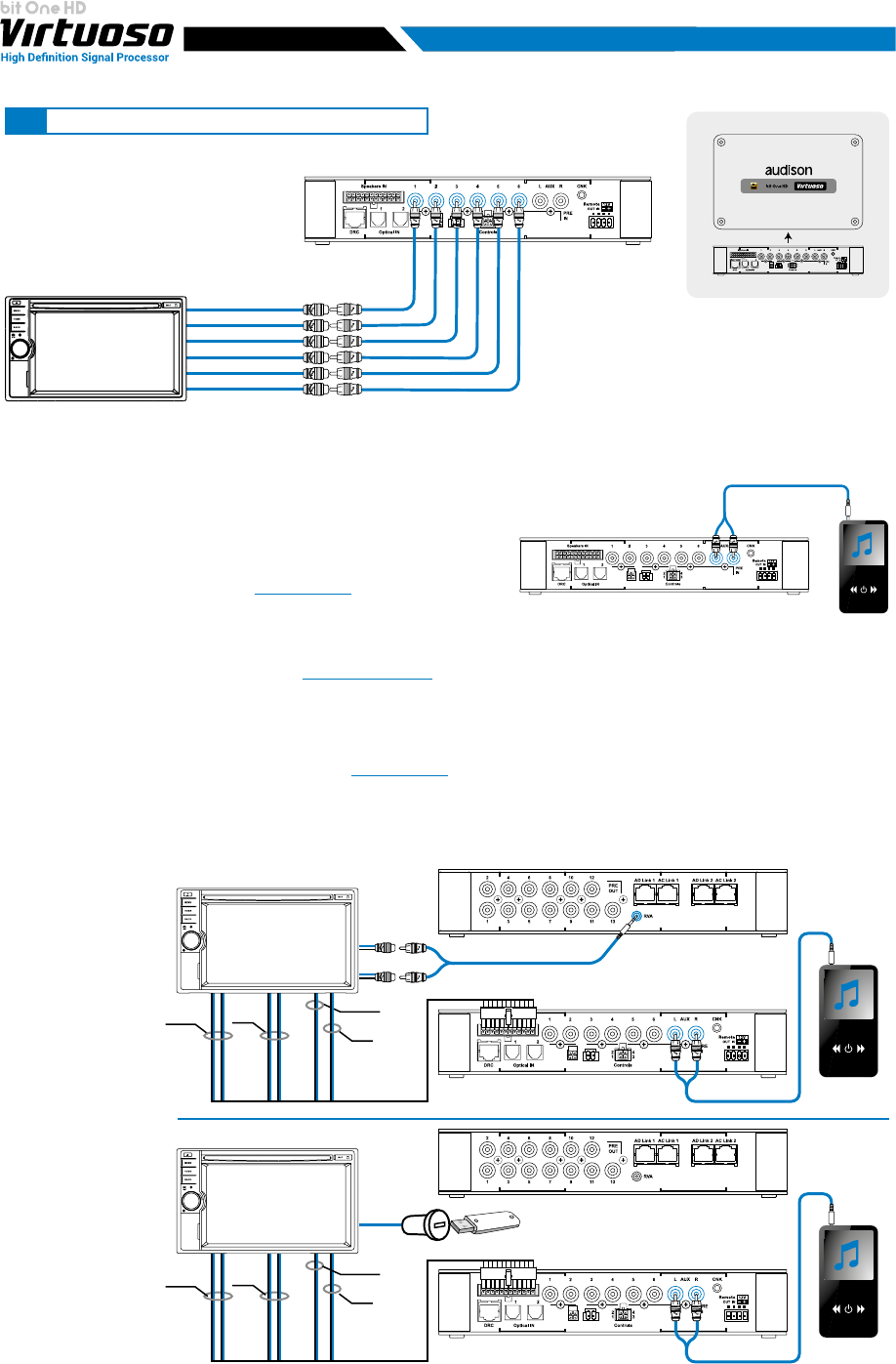

5.4 LOW-LEVEL AND DIGITAL INPUT SIGNALS
