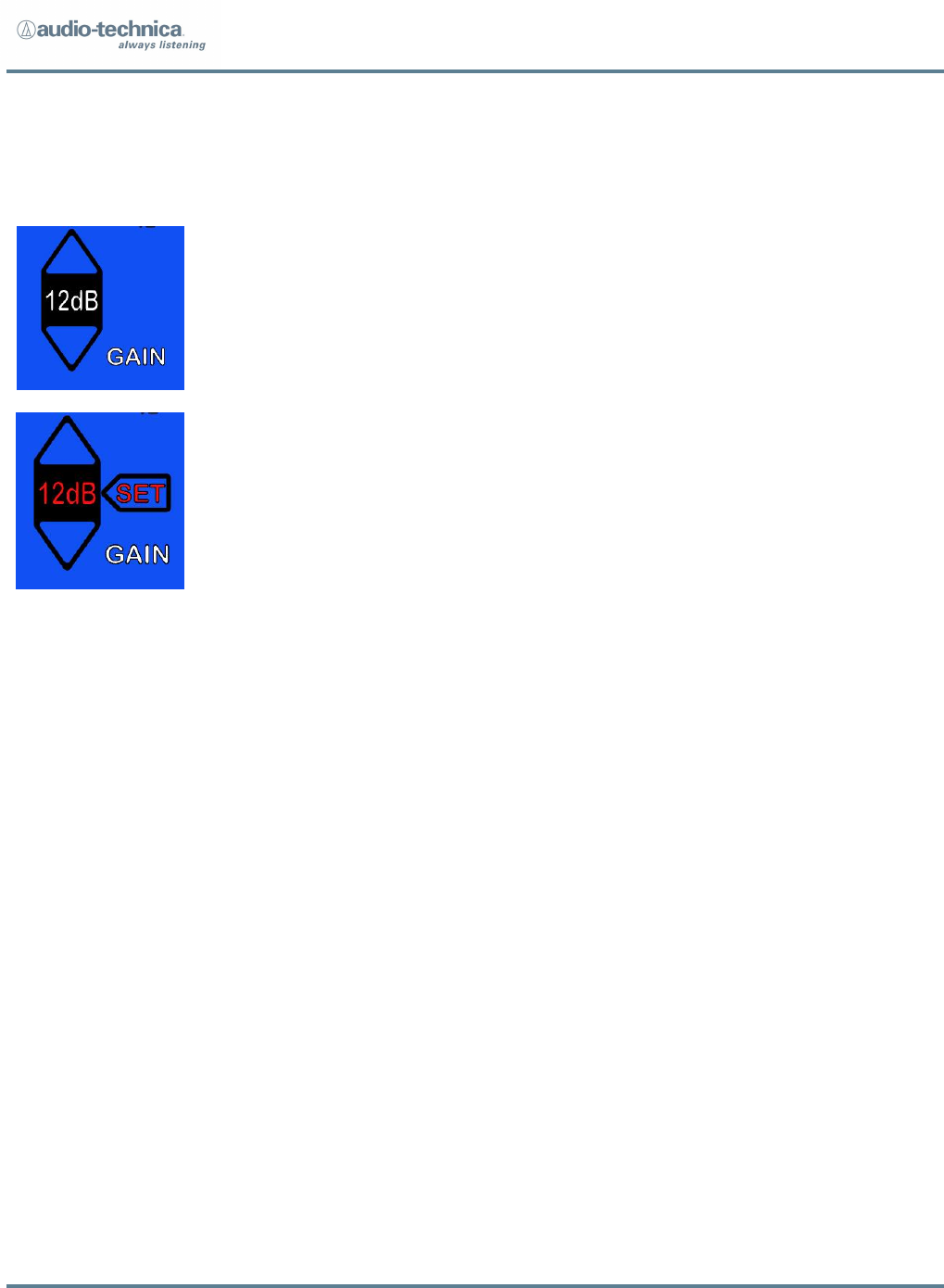

The user will be able to control the transmitter audio input level from this screen.
The user may press either the up or down arrow to select the desired
gain setting.
This action will cause the new value to be displayed (in red) and a “Set”
button will appear. The setting is not changed on the transmitter
until the set button is pressed.
Activating another function on the GUI or allowing a 10 second
interval without interaction will abandon the change.
Once the set button is pressed, the system will send a command to
the transmitter to change the setting. When the transmitter
acknowledges the change, the set button will disappear, and the setting color will
change back to white.
Note: When the transmitter is not in link this option will not be available.
If the transmitter does not acknowledge the change after several attempts, an error
message will be displayed and the setting will revert to the previous setting. This would
only happen if the transmitter moved out of the coverage pattern during the change
process.
6.3 Matrix Screen - Receiver Measurement
The matrix screen allows the user to visualize specific connections between 32 possible
receivers and 24 possible transmitters. There are two modes: Receiver Test and
Transmitter Test.
In the receiver test mode the user selects a source transmitter - blue buttons on the
right side of the screen - and the screen on the left indicates the active receivers
currently linked to that transmitter. Active receivers are indicated with a blue square;
green fill indicates a link to the selected transmitter.
