6.2 Transmitter Detail Screen
The detail screen gives the user a view of the all transmitter information in one place;
including a history of the transmitter’s link status, and battery use details.

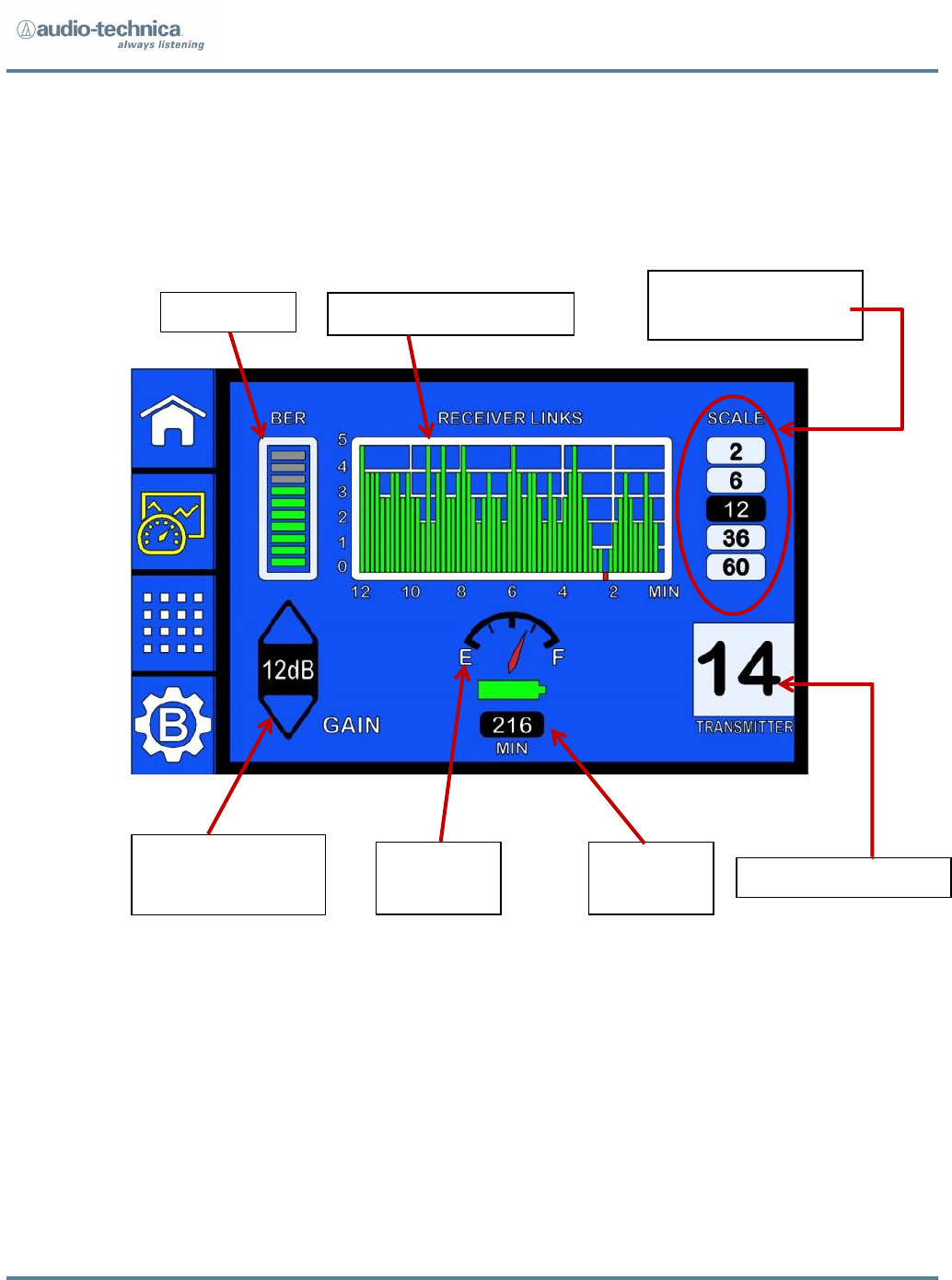

The receiver link chart shows the history of the transmitter link status over the timer
scale selected (2 to 60 Min). Each bar indicates the minimum number of receivers the
transmitter is linked to. If the link is dropped, a red mark shows the time when it
happened.
BER METER
Critical Battery
RECEIVER LINK HISTORY
Transmitter Audio
Input Level
TIME BASE FOR
RECEIVER LINK CHART
CHANNEL NUMBER
Battery
Fuel Gauge
Battery
Time Left
