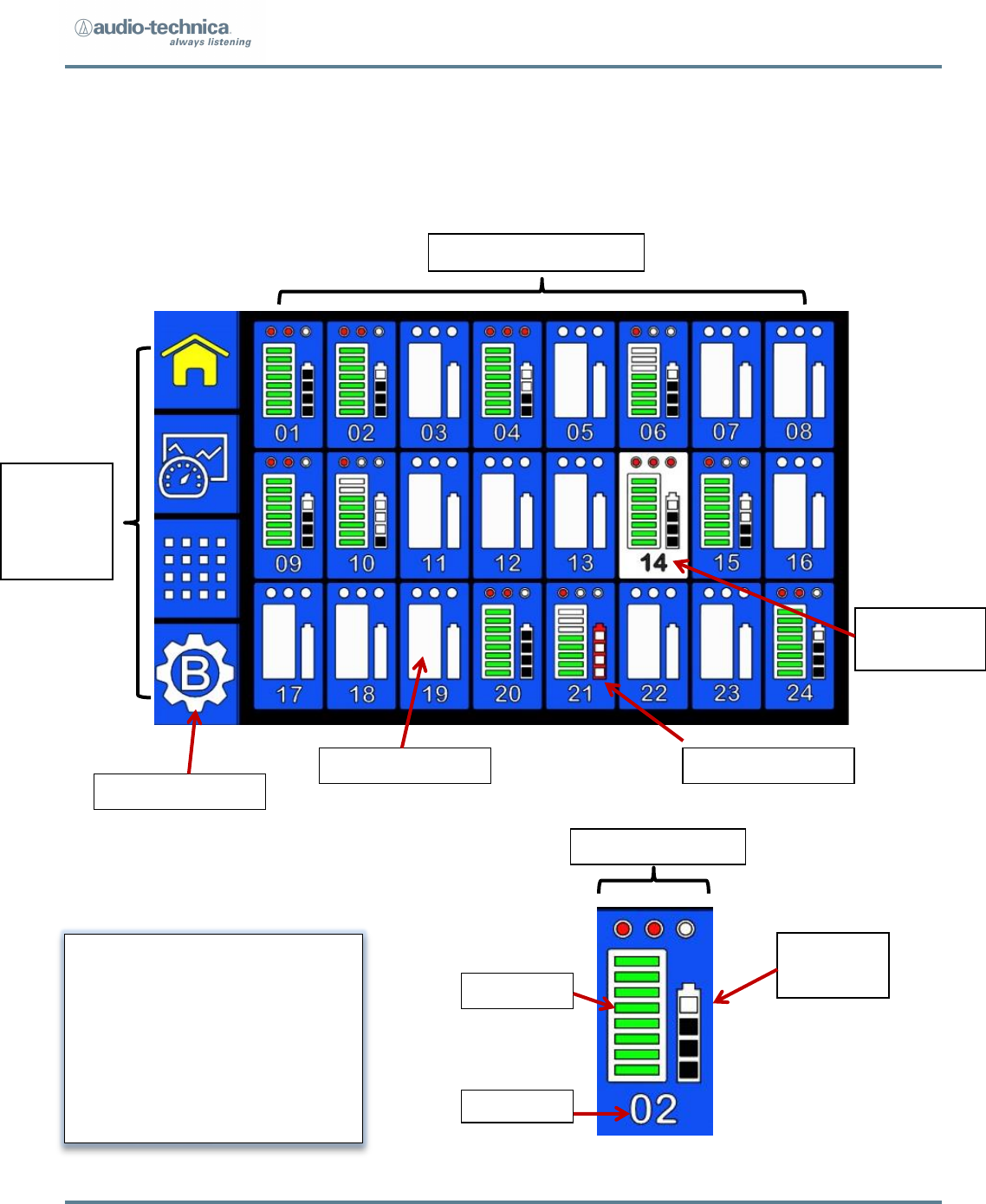

6.1 Home Screen
Screen
Navigation
Buttons
Yellow = Active
Channel Monitoring
BER Meter
Battery
Gauge
Receiver Links
Channel
Critical Battery
Inactive Channel
Receiver Link Indicators tell the
user how many receivers are
currently linked to the transmitter
(1, 2, or 3+.)
This is a very good indicator of the
strength of the transmitter’s
current UWB link
System ID
Selected
Channel
