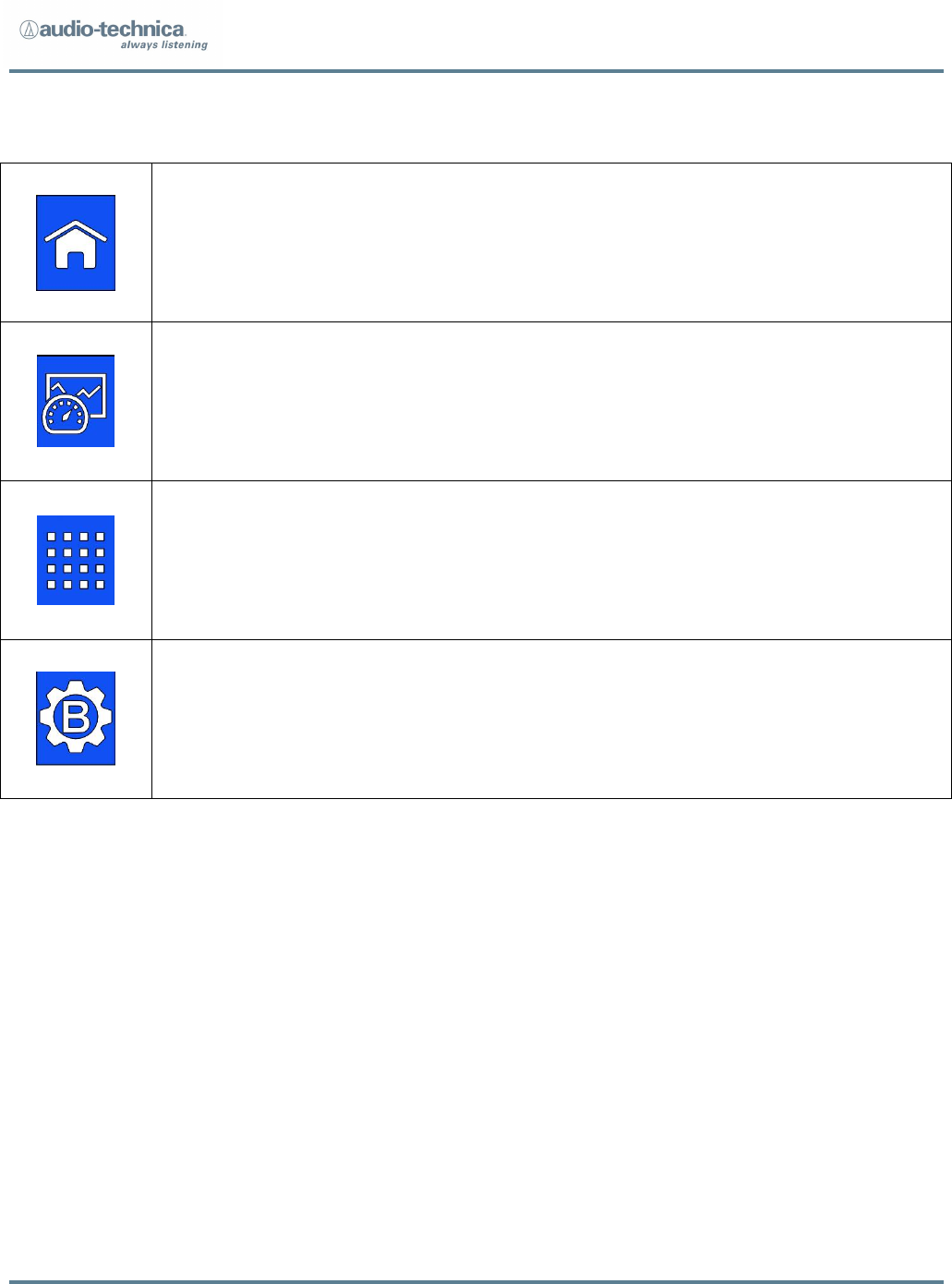

The GUI interface is divided into four screens:
Home Screen – This screen will display an overview of all 24 transmit
channel slots at once. The user will be able to select the “active” channel
on this screen by tapping the corresponding channel tile. The audio from
the active channel will be sent to the headphone monitor output.
Transmitter Detail Screen – Activating this screen will display more
detailed information about the status of the active channel, including
battery information and connection history.
Matrix Screen – This screen is used for system set up, coverage
confirmation and detailed debugging of receivers and transmitter links.
System Setup – This screen contains the basic system set up parameters.
Dante, and MADI set up information, Ethernet IP Address, System ID etc…
The letter in the center indicates the System ID.
