4 RP32 UWB Receiver Module
A two digit display (7 Segment LED) is provided to automatically indicate the receiver
channel number when the RP32 is connected via a CAT5 cable to the corresponding
output channel of the MCU3224. This display serves as the unit’s power indicator. A
visible channel number also indicates that there is a full round-trip connection between
the RP and the MCU communications, confirming that the cable, the RP and the
corresponding MCU3224 channel are all operating appropriately. Should the user prefer
that the LED lights not be illuminated, there is a control option available on the MCU
“tools” screen which allows this RP display lights to be turned off.
Receiver ID Number

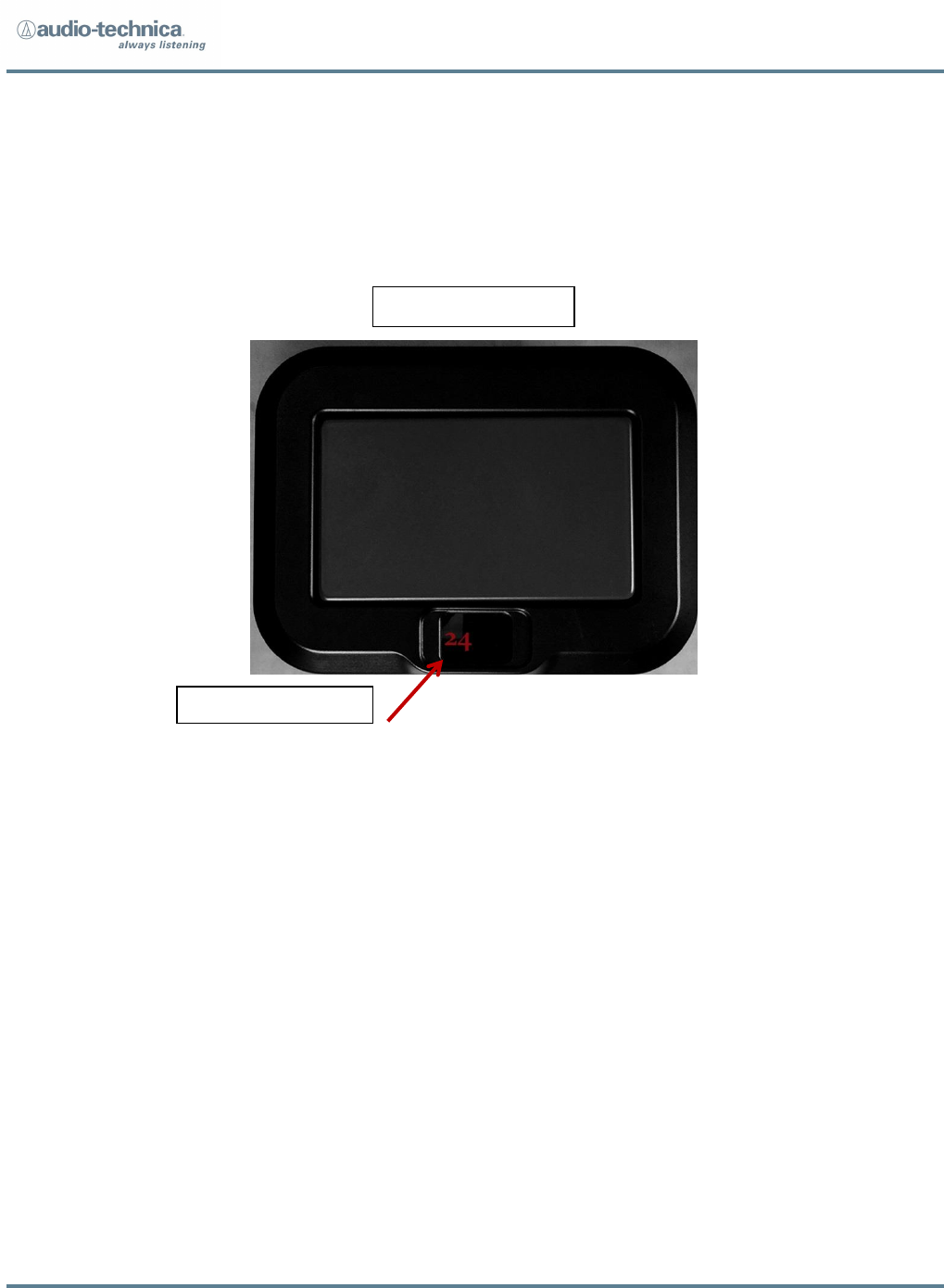

Receiver Front View
