User Manual

2000 Series Installation and Operation
6
Transmitter Controls and Functions
Battery Selection
Two 1.5V AA alkaline batteries or rechargeable AA NiMH batteries
for use with Audio-Technica’s ATW-CHG2 Recharging Station are
recommended.
UniPak
®
Transmitter Battery Installation
1. Open the transmitter door by pressing gently on the side-cover
indentations and pulling back the hinged cover.
2. Lift the battery-keeper arm, and carefully insert two fresh 1.5V AA
alkaline batteries or rechargeable AA NiMH batteries, observing
correct polarity as marked inside the battery compartment.
3. Close the battery-keeper arm.
4. Close the transmitter door.

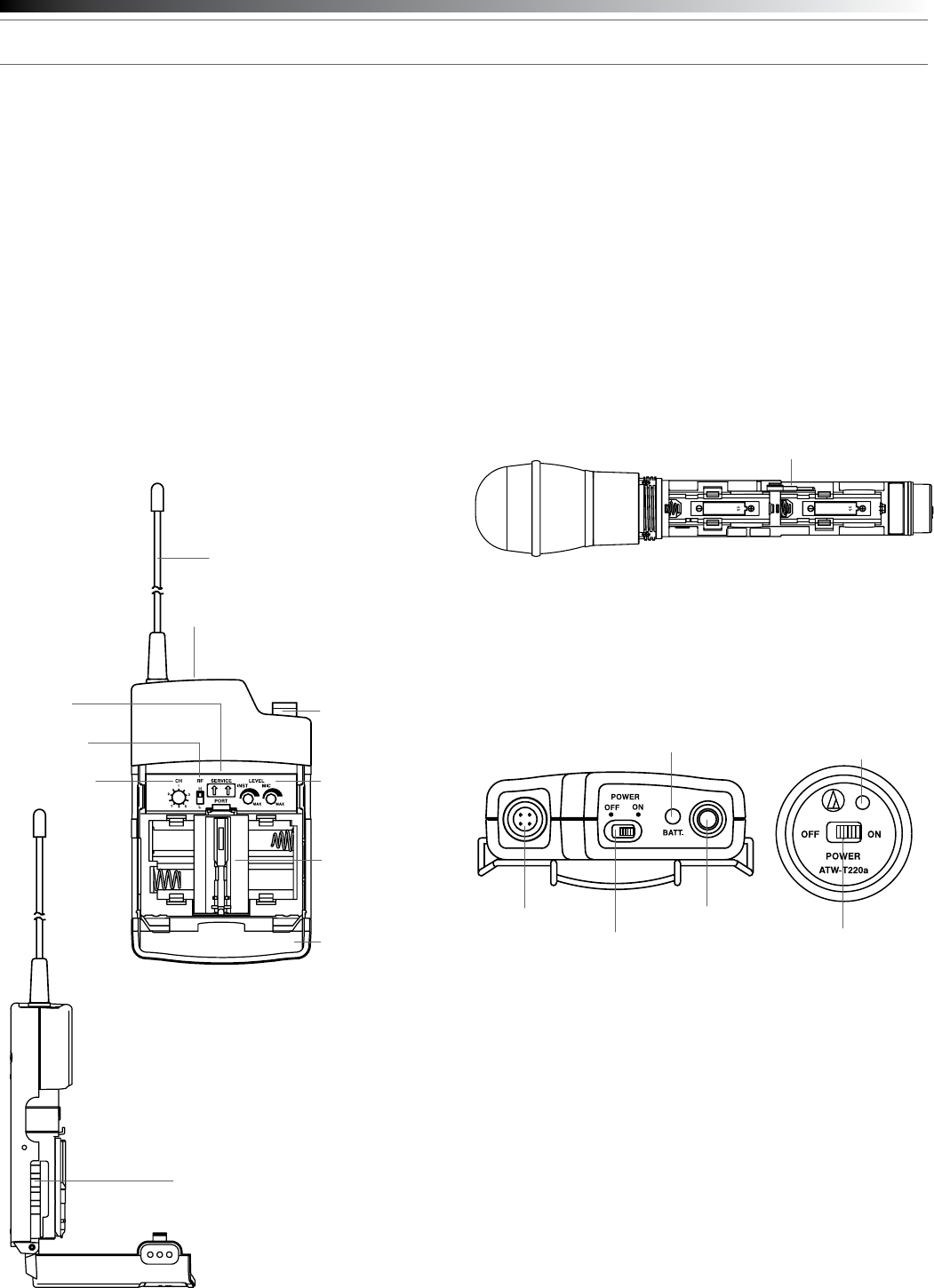

Fig. E – UniPak
®
Transmitter Open
Handheld Transmitter Battery Installation
1. While holding the upper part of the transmitter body below the ball-
screen, unscrew the lower body cover, slide it downward, and
remove it to expose the battery compartment.
2. Observe correct polarity as marked inside the battery compartment
and carefully insert two fresh 1.5V AA alkaline batteries or
rechargeable AA NiMH batteries. Make certain the batteries are fully
seated in the battery compartment. (Fig. F )
3. Slide the lower body cover back up the body, then screw the
housing together. Do not overtighten.
Note: Remove batteries from the handheld transmitter starting at the
bottom end, where nger indents in the battery housing are provided
for easy grip.
Fig. F – Handheld Transmitter Battery Compartment
Battery Indicator
After the battery is installed, turn on the power switch (located on
the bottom of the handheld transmitter and on the top of the UniPak
transmitter). The battery indicator LED (Fig. G/H) should turn red. If it
does not, the batteries are installed incorrectly or they are dead.
Fig. G – UniPak Transmitter
Top View
UniPak
®
Transmitter Input Connection
Connect an audio input device (microphone or guitar cable) to the
audio input connector on the top of the transmitter. A number of
Audio-Technica professional microphones and cables are available
separately, pre-terminated with a UniPak input connector.
UniPak
®
Transmitter Antenna
The ATW-T210a UHF UniPak
®
body-pack transmitter includes one
eld-replaceable antenna mounted on the transmitter. The antenna
simply screws into the transmitter’s antenna tting. Check the installed
antenna occasionally to make certain it is snugly attached (only nger-
tight). If the received signal is marginal, experiment with different
transmitter positions on your body or instrument or try repositioning the
receiver. Do not attempt to modify the transmitting antenna. Replace
it only with the same parts, available from the Audio-Technica Service
Department.
Charging Contacts
Transmitter
Door
Antenna
Audio Input Jack
Instrument/
Microphone Level Trim
Controls
Channel Selector
Switch
RF Power
Select Switch
Service Port
(for factory use only)
Battery-keeper
Arm with
Screwdriver
attached
Power-on LED
Screwdriver
Input Connector
Power Switch
Battery Indicator
Antenna
Power Switch
Battery Indicator
Fig. H – Handheld Transmitter
Bottom View
