User's Guide

6. System Settings
Press the MENU button to go to the “SETUP” screen in order to change parameter settings.
Please note that the “Settings Menu” is password protected and can only be accessed when
the correct password is entered on the Camera. Therefore, only the person / people who
know the password can change the Settings.

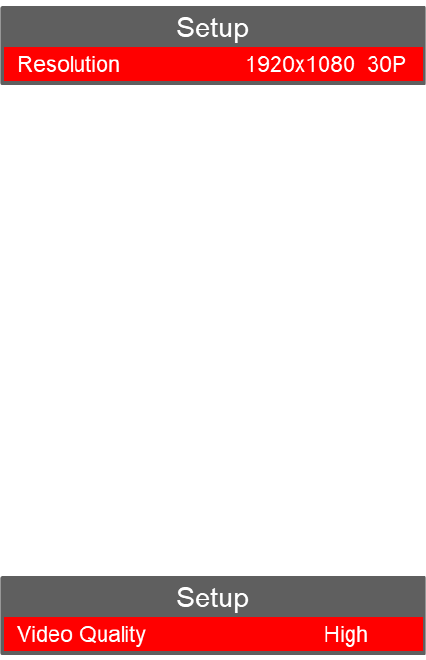

a. Resolution
Select RESOLUTION (will be highlighted in RED) and select OK. This gives you the
option to change the resolution settings.
There are six options to select from (all at 30fps):
2560 x 1440 30fps 16:9 2304 x 1296 30fps 16:9
1920 x 1440 30fps 4:3 1920 x 1080 30fps 16:9
1280 x 720 30fps 16:9 848 x 480 30fps 16:9
Press “Up” or “Down” to select the required resolution and press “OK” to confirm. Press
“Back” to return to standby.
b. Video quality
Select VIDEO QUALITY (will be highlighted in RED) and select OK. This gives you the
option to change the video quality (bitrate) in the following settings:
There are three options to select from: Normal, Fine and S. Fine. This gives different
settings dependent on the Resolution set.
2560 x 1440 – 30 18.0Mbps Normal 14.0Mbps Fine 9.0Mbps S. Fine
2304 x 1296 – 30 15.0Mbps Normal 12.0Mbps Fine 8.0Mbps S. Fine
1920 x 1440 – 30 15.0Mbps Normal 12.0Mbps Fine 8.0Mbps S. Fine
1920 x 1080 – 60 12.0Mbps Normal 10.0Mbps Fine 8.0Mbps S. Fine
1280 x 720 – 30 8.0Mbps Normal 6.0Mbps Fine 4.0Mbps S. Fine
848x 480 – 30 5.0Mbps Normal 4.0Mbps Fine 3.0Mbps S. Fine
Press “Up” or “Down” to select the required setting and press “OK” to confirm. Press
“Back” to return to standby.
