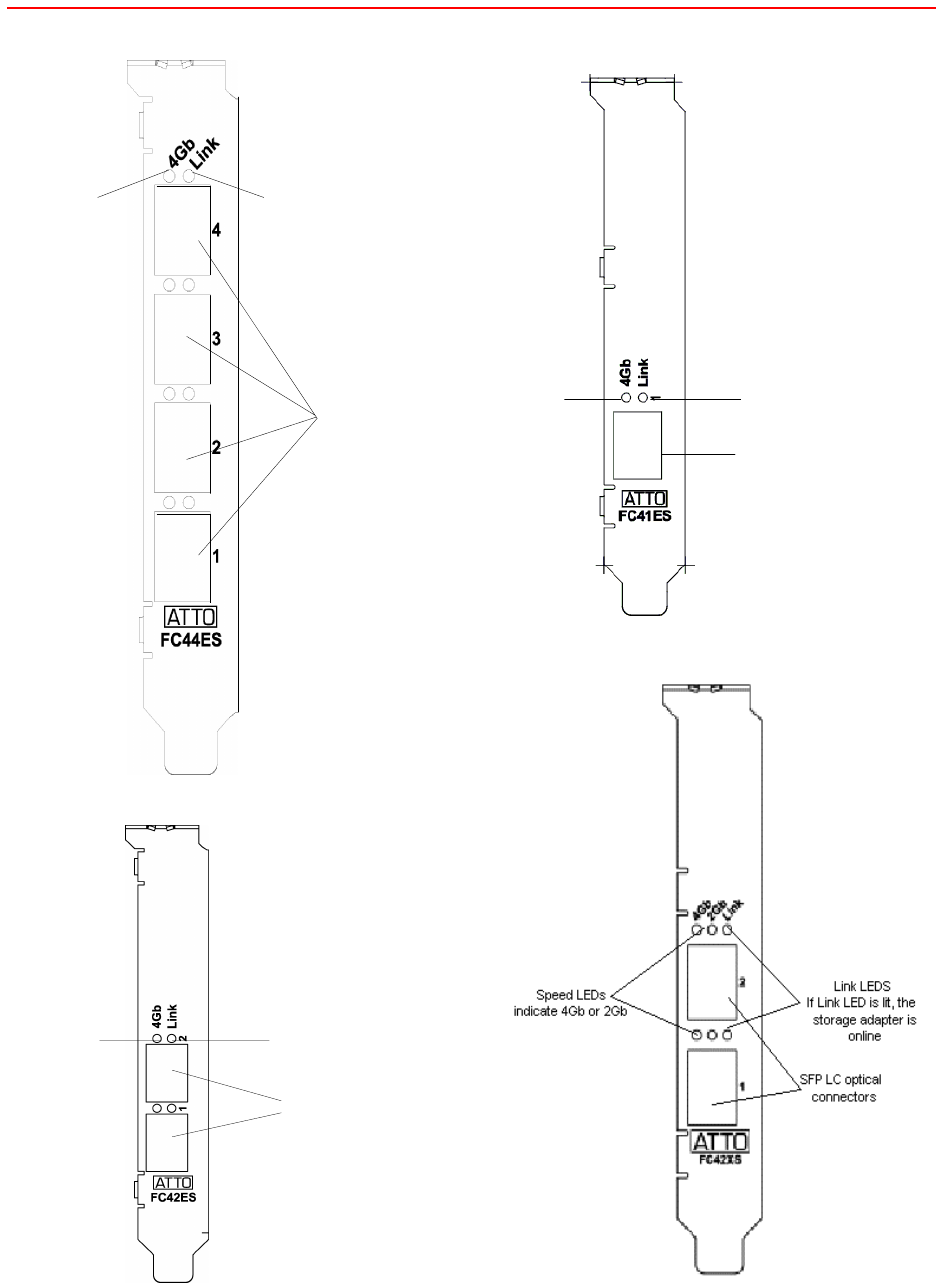

Bracket details
Exhibit 3-1 FC-44ES Adapter
Exhibit 3-2 FC-42ES Adapter
Exhibit 3-3 FC-41ES Adapter
Exhibit 3-4 FC-42XS Adapter
Link LED
If Link LED is lit, the storage
adapter is online
Speed LED
indicate 4Gb
SFP LC optical
connector
Link LEDS
If Link LED is lit, the storage
adapter is online
Speed LEDs
indicate 4Gb
SFP LC optical
connectors
Link LEDS
If Link LED is lit, the
storage adapter is online
Speed LEDs
indicate 4Gb
SFP LC optical
connectors
