Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
92
8.2.2 Running Serial/IP in Windows
Find Serial/IP Control Panel from:
Start → All Programs → Serial/IP → Control Panel
In the Windows Control Panel, open the Serial/IP applet.

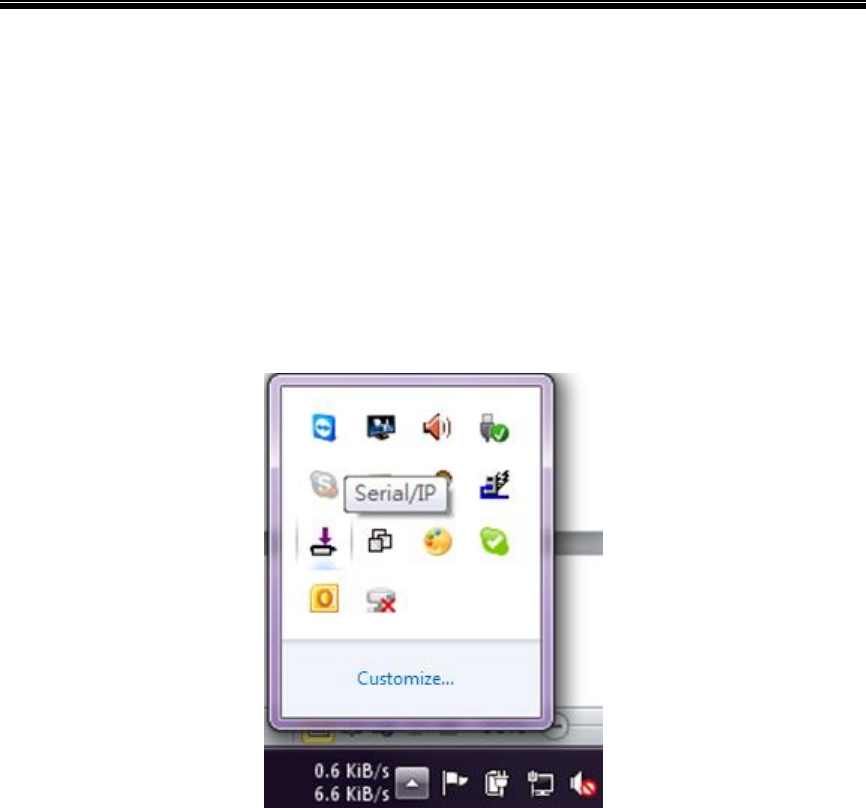

In the Windows notification area, Figure 8.5; right click in the Serial/IP tray icon and
click on Configure to open the Control Panel.
Figure 8.5
If no Virtual COM port is selected, a dialog will pop up and asks to select at least one port as
the Virtual COM port before proceeding, Figure 8.6.
