Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
85
IP Address
Link Mode
Local Listening Port
Destination IP
Destination Port
SE5416A Master COM1
10.0.50.100
UDP
5000
10.0.50.200~10.0.50.202
5000
SE5416A Master COM1
10.0.50.100
UDP
5001
10.0.50.200~10.0.50.201
5000
SE5416A Master COM1
10.0.50.100
UDP
5002
10.0.50.200
5000
SE5416A Slave 1 COM1
10.0.50.200
UDP
5000
10.0.50.100
5000
SE5416A Slave 1 COM2
10.0.50.200
UDP
5001
10.0.50.100
5001
SE5416A Slave 1 COM3
10.0.50.200
UDP
5002
10.0.50.100
5002
SE5416A Slave 2 COM1
10.0.50.201
UDP
5000
10.0.50.100
5000
SE5416A Slave 2 COM2
10.0.50.201
UDP
5001
10.0.50.100
5001
SE5416A Slave 3 COM1
10.0.50.202
UDP
5000
10.0.50.100
5000

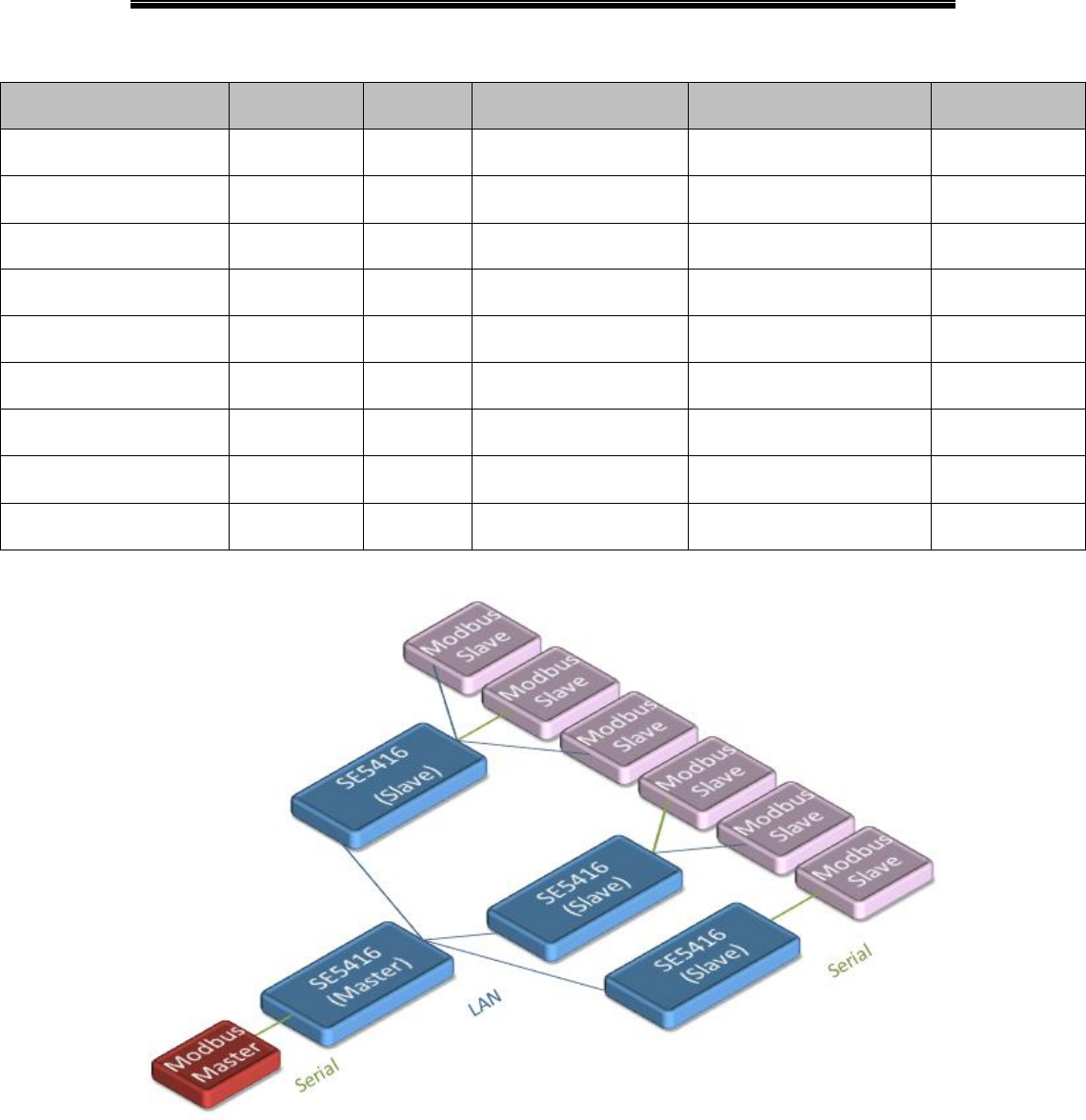

Figure 7.12
