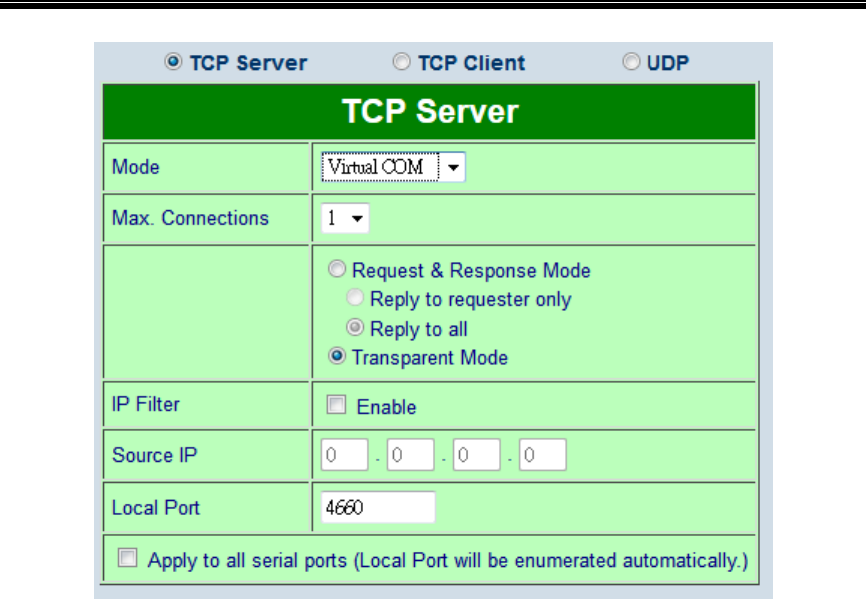

Figure 7.9
Follow Sec. 7.2.1 to configure SE5416A Series in TCP Server mode properly.
Click on the dropdown box of the Mode option and switch to “Virtual COM” to enabled
Virtual COM application in SE5416A Series.
Scroll to the bottom of the page and click on “Save Configuration” button to save the
changes.
Remember Pair Connection Master’s IP address here in order to enter this information in
the Slave later.
Proceed to the Sec. 7.2.6 to configure a Slave to connect to this Master.
7.2.6 TCP Client Application: Configure SE5416A Series as a Pair
Connection Slave
A Pair Connection Slave, is shown in Figure 7.10; it is necessary to pair up with a Pair
Connection Master. Please setup a Pair Connection Master first before proceeding.
