Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
72
7.1.1 TCP Server Mode
SE5416A Series can be configured as a TCP server in a TCP/IP Network to listen for an
incoming TCP client connection to a serial device. After the connection is established between
the serial device server and the host computer, data can be transmitted in both directions; this
also applies whenever the VCOM is running on server mode. Please be reminded that this is
the device’s default link mode.

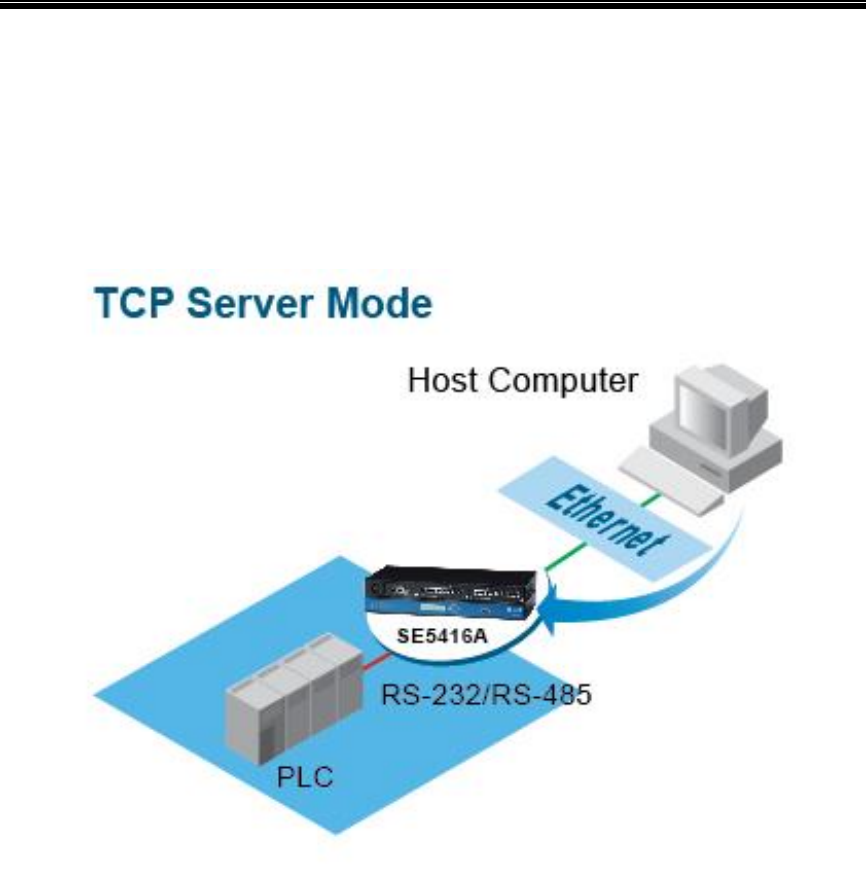

Figure 7.1
SE5416A Series defaults in TCP Server mode, there are additional connection settings that
can be configured, Figure 7.2. By selecting the TCP Server mode, a TCP Client program
should be prepared to connect to SE5416A Series.
