Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
63
6.5.6 STP Settings
STP function in SE5416A Series can be enabled or disabled. Once enabled, you can set STP
version, priority, maximum age, hello time, forward delay, port path cost, port priority, port P2P,
and port Edge.

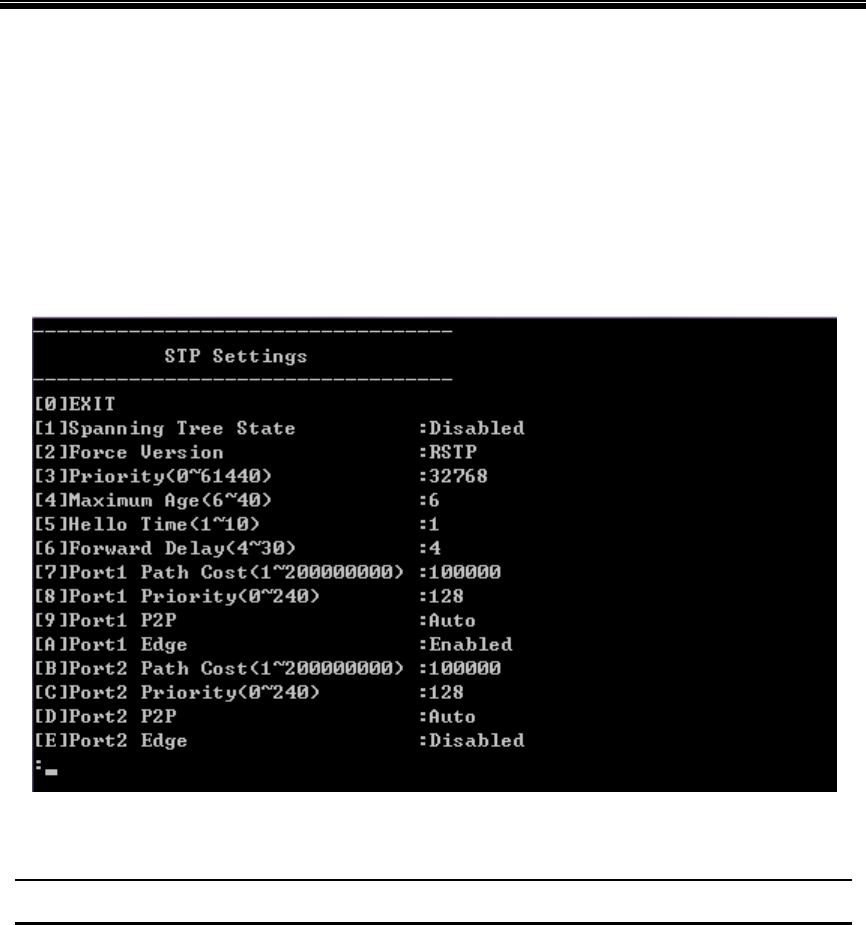

Operation: Main → [2]Networking → [8]STP Settings
Figure 6.10
Note: It is not possible to enable STP when Bridge is disabled.
