6.5 Networking Configuration
This section allows you to change IP address, subnet mask, gateway, and SNMP information.
Please note that the new settings will not take effect until the device is restarted.
Operation: Main → [2]Networking

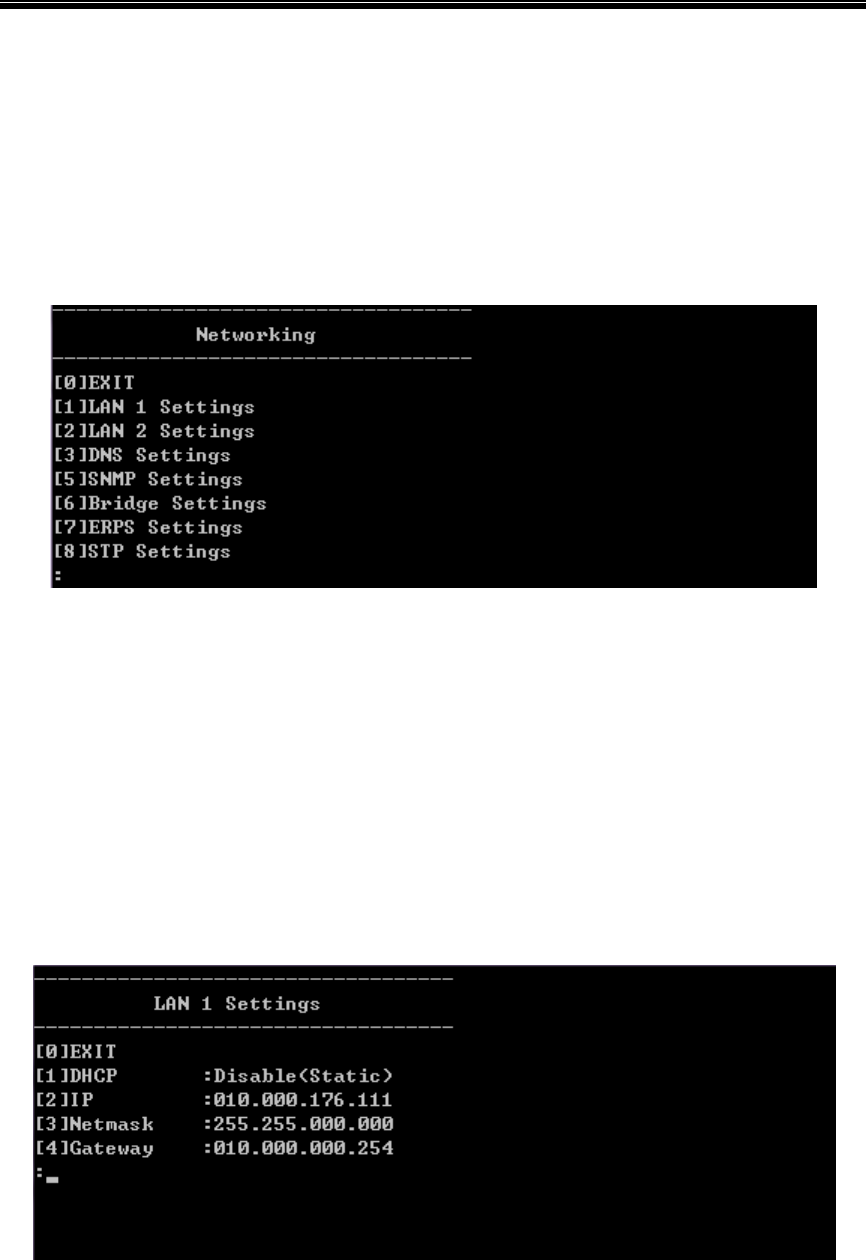

Figure 6.4
6.5.1 LAN 1 / LAN 2 Settings
Enter “LAN settings” and you will see a menu to configure the DHCP, IP address, subnet mask,
and gateway of that LAN.
Operation: Main → [2]Networking → [1]LAN 1 Settings;
Operation: Main → [2]Networking → [2]LAN 2 Settings
Figure 6.5
