Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
51

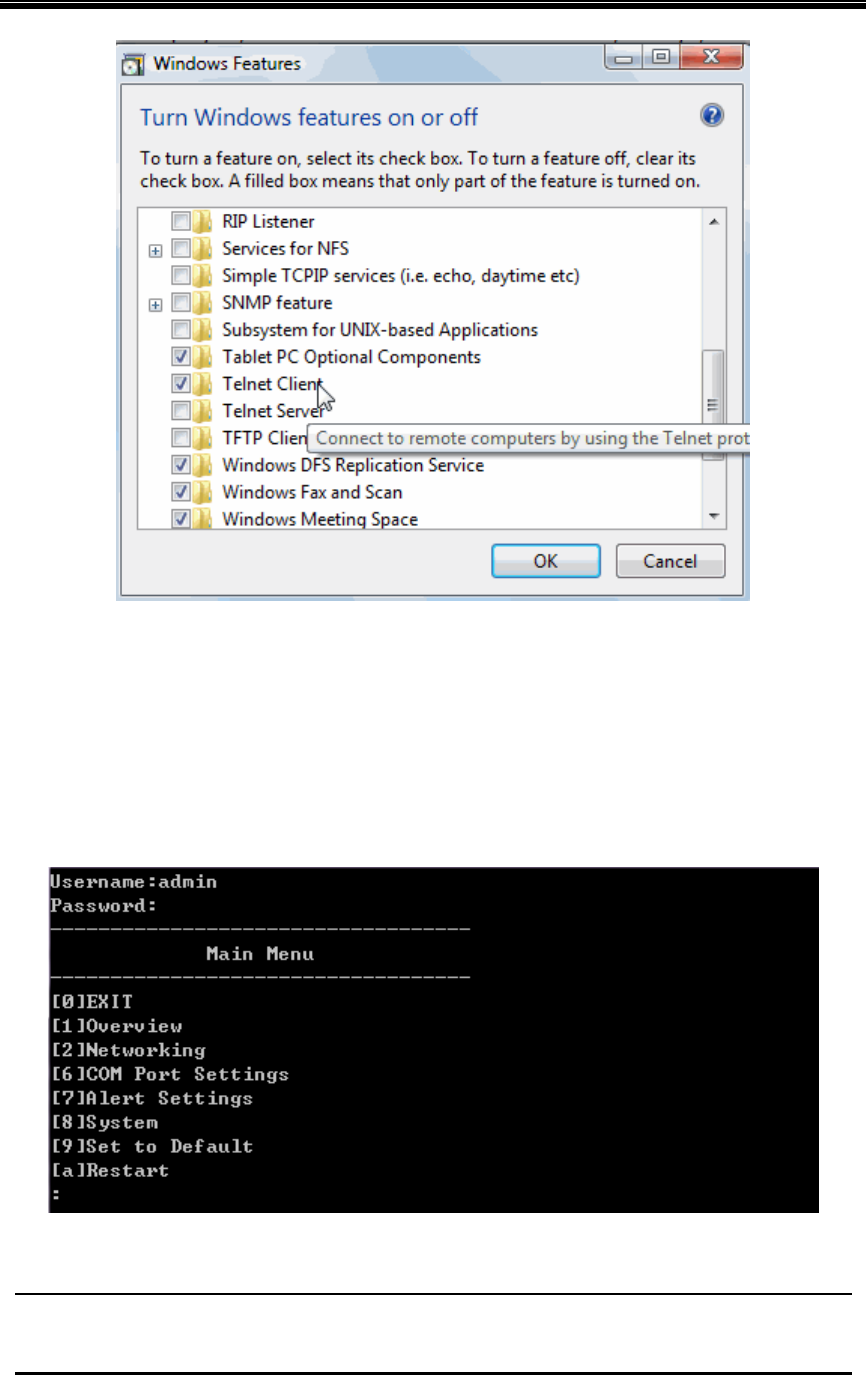

Figure 6.1
6.2 General Information
Open the command line interface (console terminal) and telnet to the device using its IP
address. The default username is “admin” and password is empty (blank). A main menu
should appear, Figure 6.2.
Figure 6.2
Note:
1. SE5416A Series will automatically close the telnet connection after three minute of inactivity.
