Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
49

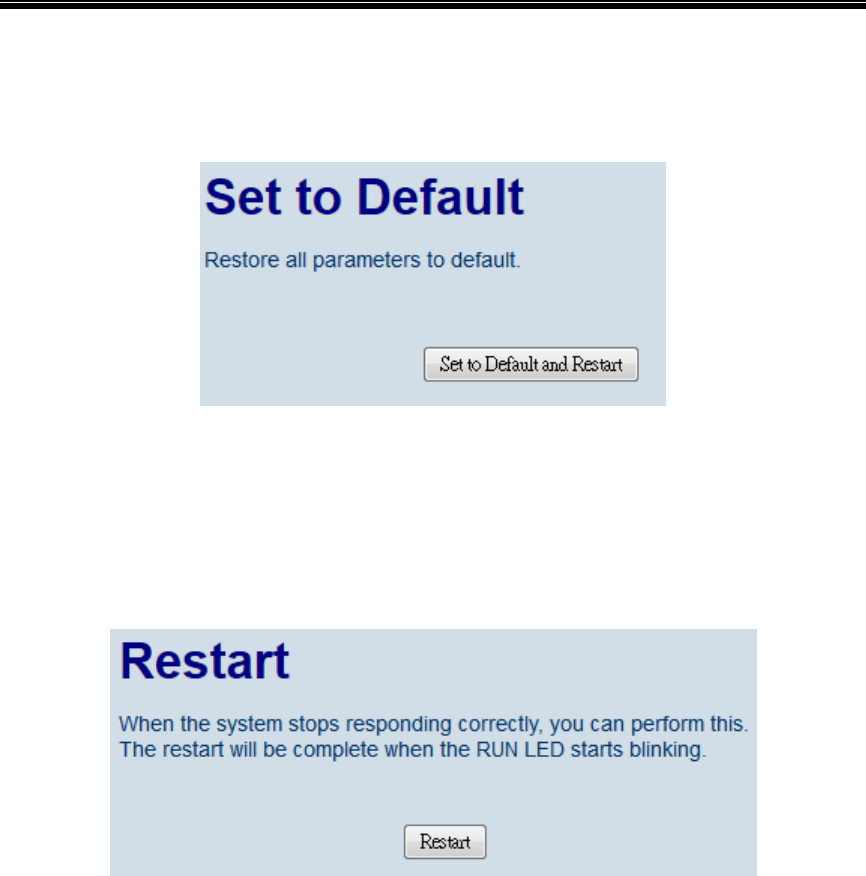

5.6.8 Set to Default
Click on “Set to Default and Restart” button to restore the device’s settings to Factory Default
Settings.
Figure 5.31
5.6.9 Restart
Click on the “Restart” button to restart the device. The web page will refresh after the device
complete the reboot.
Figure 5.32
