Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
45

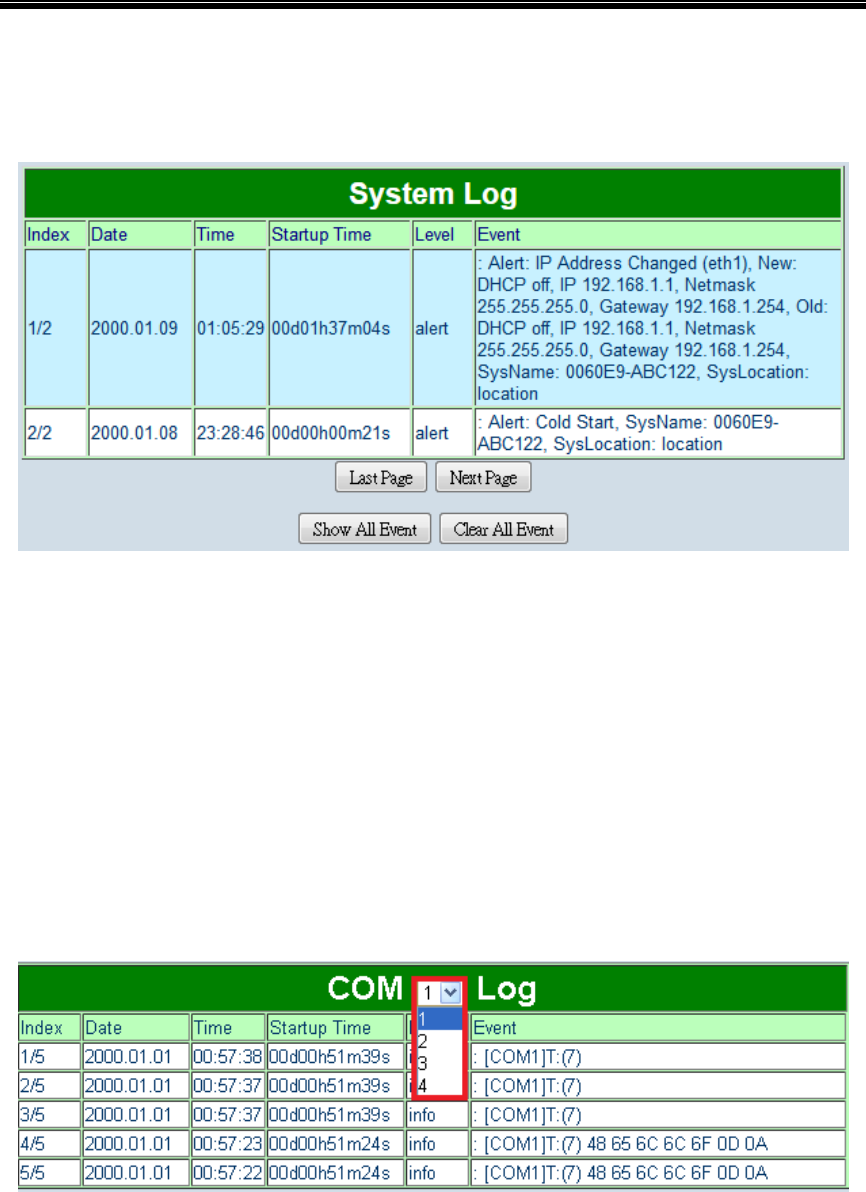

5.6.3 System Log
Display the current syslog stored in the device.
Figure 5.25
Click on “Last Page” to go to the last page. Click on “Show All Event” to show all events in one
page. Click on “Clear All Event” to clear the events stored in the device.
5.6.4 COM Log
You can select from the COMx dropdown box to display logs from different COM ports. The
first three lines were set to show the logging of data length and the last two lines were set to
show data content in Hexadecimal.
Figure 5.26
Click on “Last Page” to go to the last page. Click on “Show All Event” to show all events in one
page. Click on “Clear All Event” to clear the events stored in the device.
