5.6 System Configuration
Click on the “System” link to open its submenu and this will lead you to the Link State.

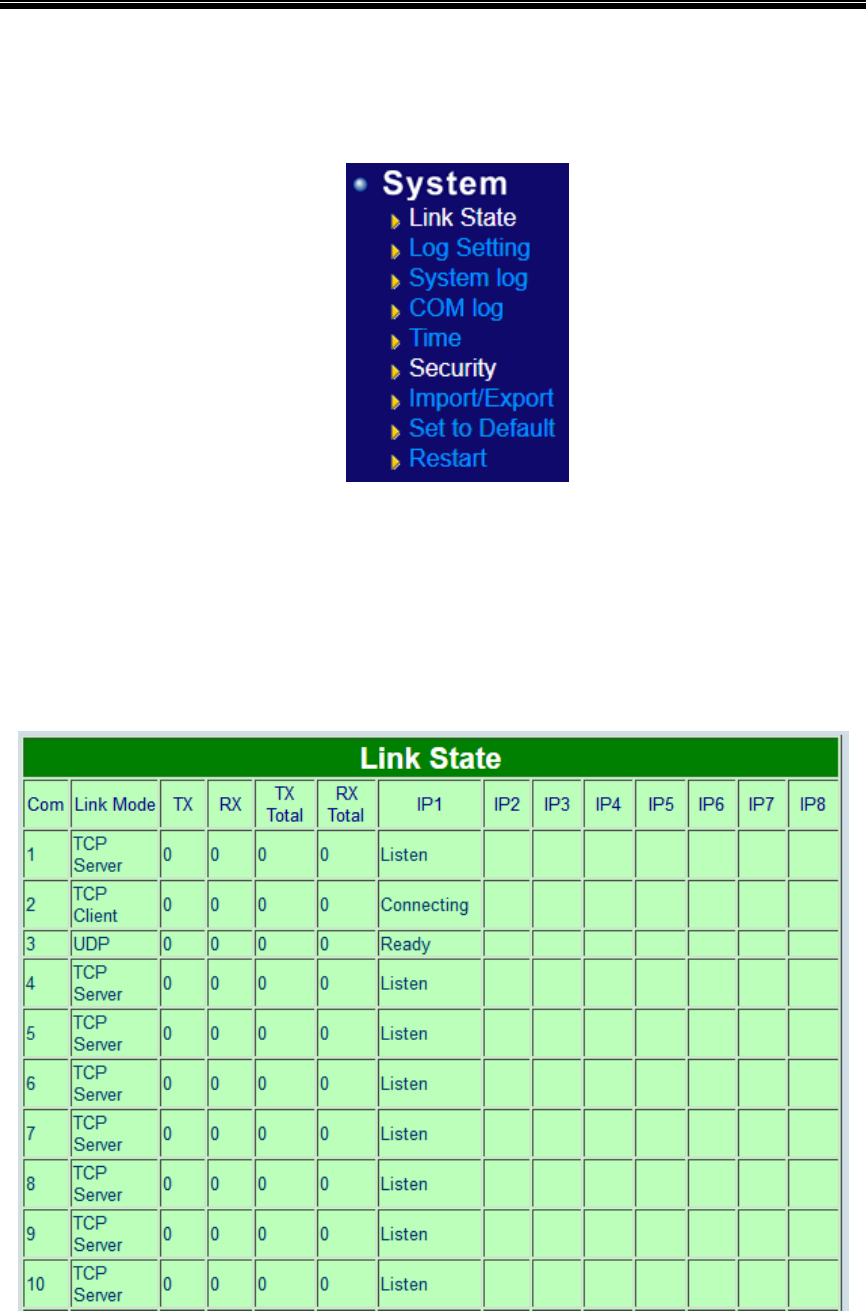

Figure 5.21
5.6.1 Link State
Link State displays the information of each connection for all serial ports for debugging
purposes. It also displays the byte count of each serial port’s Transmit (Tx) and Receive (Rx)
data.
Figure 5.22
