Atop Industrial Serial Device Server
SE5408A/SE5416A Series
User Manual V 1.0
106
keep-alive message, if no there is no activity
Maximum Connection Recovery Interval Controls the maximum time for “Restore
Failed Connection”
Enable SETXON/SETXOFF COM Port Commands This option enables additional
negotiation on SETXON and SETXOFF commands and is only available for the “V” series
serial device servers. If the application requires SETXON/SETXOFF feature, please contact
Atop Tech Support.
8.3.5 Using Serial/IP with a Proxy Server
The Serial/IP Redirector supports TCP network connections made through a proxy server,
which may be controlling access to external networks (such as the Internet) from a private
network that lacks transparent IP-based routing, such as NAT. Find Proxy Server settings from
the Advanced Settings windows and switch to the Proxy Server tab, Figure 8.19.

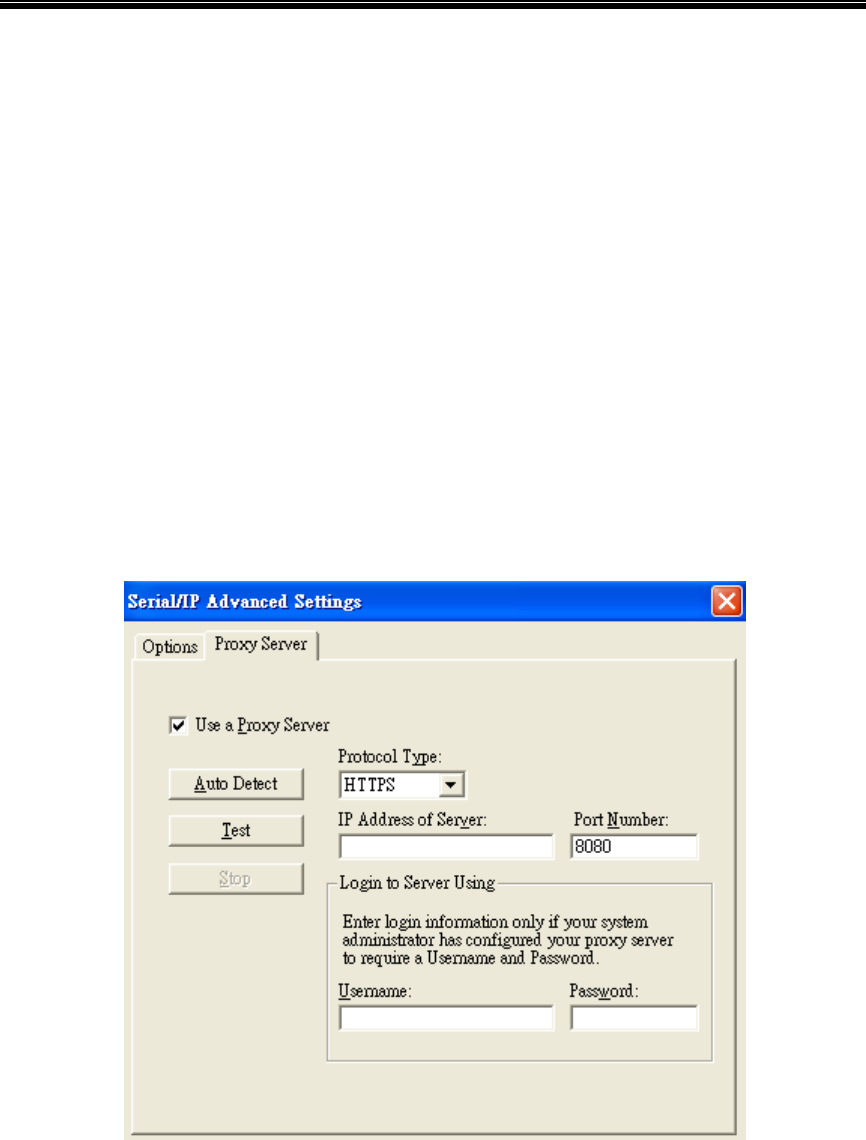

Figure 8.19
