8.3.3 The Trace Panel
Figure 8.17

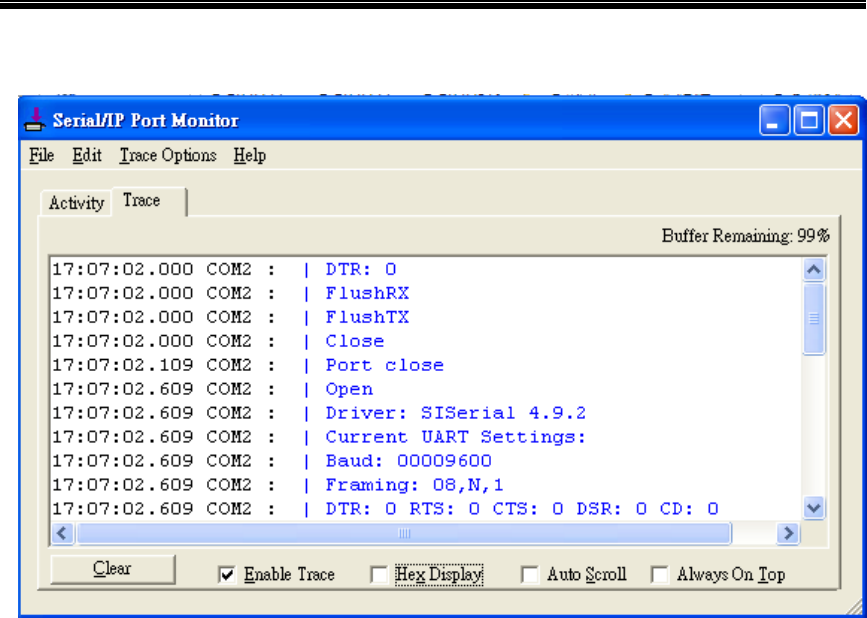

The Trace panel provides a detailed, time-stamped, real-time display of all Serial/IP COM
ports operations, Figure 8.17. Click on Enable Trace to start logging Virtual COM
communication. Click on File → Save As and send the log to Atop for analysis if problems
arise with Virtual COM.
8.3.4 Serial/IP Advanced Settings
In the Serial/IP Control Panel, Click on the Advanced button to open Advanced Settings
window, Figure 8.18. Click on Use Default Settings to load the default settings.
